- 編號：26299988
- 頻率：32.768KHZ

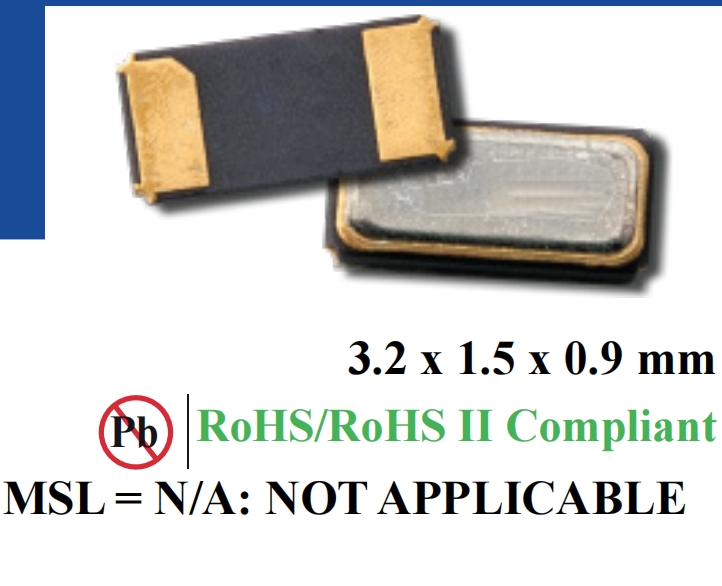

- 尺寸：3.2*1.5mm
3215mm\ABS07W-32.768KHZ-J-2-T\無線模塊\32.768K\ABS07W
3215mm\ABS07W-32.768KHZ-J-2-T\無線模塊\32.768K\ABS07W,尺寸為3215mm,頻率為32.768KHZ,頻率容差為20ppm，負載電容3pF,工作溫度為-40C~+105C，美國艾博康晶振，Abracon晶振，無源晶振，石英晶體諧振器，石英晶體，無...
TXC,NDK,希華.jpg)
3215mm\ABS07W-32.768KHZ-J-2-T\無線模塊\32.768K\ABS07W,尺寸為3215mm,頻率為32.768KHZ,頻率容差為±20ppm，負載電容3pF,工作溫度為-40°C~+105°C，美國艾博康晶振，Abracon晶振，無源晶振，石英晶體諧振器，石英晶體，無源貼片晶體，SMD晶體諧振器，貼片晶振，小型晶振，3215mm晶振，32.768KHZ晶振，穿戴設備晶振，無線模塊專用晶振，物聯網晶振，藍牙晶振，M2M專用晶振，鐘表專用晶振，低功耗專用晶振，ABS07W-32.768KHZ-K-2-T小體積晶振，ABS07W-32.768KHZ-D-1-T高品質晶振.
石英水晶振子產品主要應用范圍：穿戴，無線模塊，物聯網(IoT)，藍牙/低功耗藍牙(BLE)，機器對機器(M2M)連接，超低功耗MCU，近場通信(NFC)，SM Band應用，超低功耗、節能MCU等領域.3215mm\ABS07W-32.768KHZ-J-2-T\無線模塊\32.768K\ABS07W.格發TXC,NDK,希華.jpg)

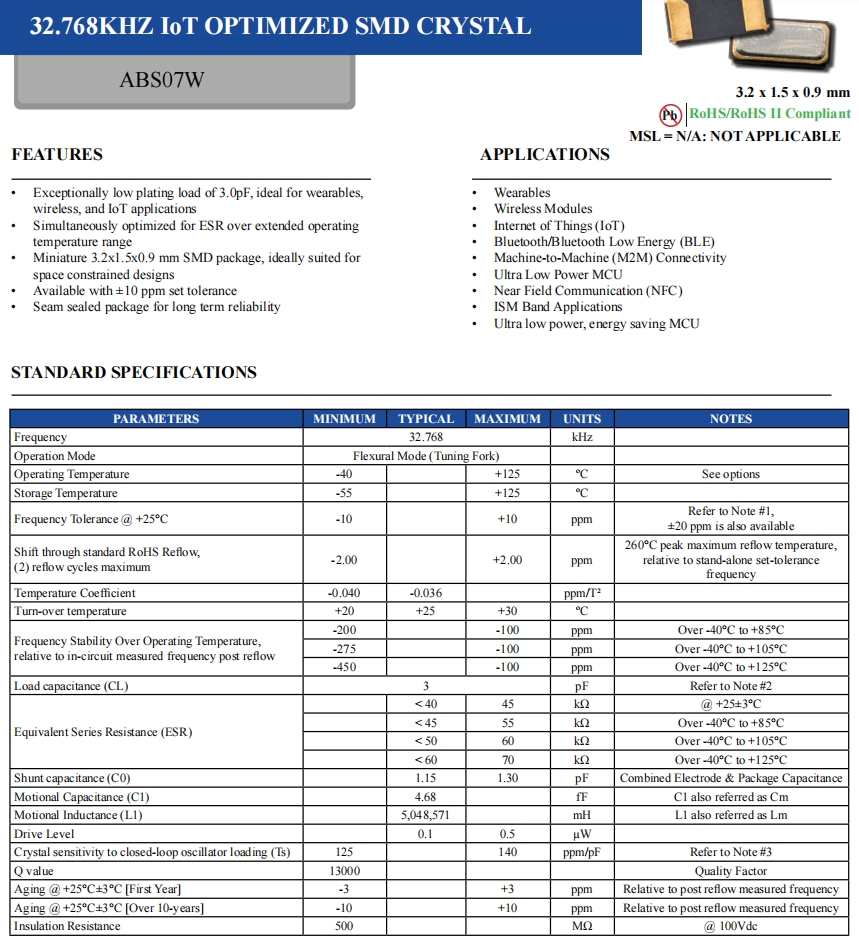

3215mm\ABS07W-32.768KHZ-J-2-T\無線模塊\32.768K\ABS07W 參數表
| PARAMETERS | MINIMUM | TYPICAL | MAXIMUM | UNITS | NOTES |
| Frequency | 32.768 | kHz | |||
| Operation Mode | Flexural Mode (Tuning Fork) | ||||
| Operating Temperature | -40 | +125 | ºC | See options | |
| Storage Temperature | -55 | +125 | ºC | ||
| Frequency Tolerance @ +25°C | - 10 | +10 | ppm |
Refer to Note #1, ±20 ppm is also available |
|
|
Shift through standard RoHS Reflow, (2) reflow cycles maximum |
-2.00 |
+2.00 |
ppm |
260°C peak maximum reflow temperature,relative to stand-alone set-tolerance frequency |
|
| Temperature Coefficient | -0.040 | -0.036 | ppm/T² | ||
| Turn-over temperature | +20 | +25 | +30 | ºC | |
| Frequency Stability Over Operating Temperature, relative to in-circuit measured frequency post reflow | -200 | - 100 | ppm | Over -40°C to +85°C | |
| -275 | - 100 | ppm | Over -40°C to +105°C | ||
| -450 | - 100 | ppm | Over -40°C to +125°C | ||
| Load capacitance (CL) | 3 | pF | Refer to Note #2 | ||
|
Equivalent Series Resistance (ESR) |
< 40 | 45 | k? | @ +25±3°C | |
| < 45 | 55 | k? | Over -40°C to +85°C | ||
| < 50 | 60 | k? | Over -40°C to +105°C | ||
| < 60 | 70 | k? | Over -40°C to +125°C | ||
| Shunt capacitance (C0) | 1.15 | 1.30 | pF | Combined Electrode & Package Capacitance | |
| Motional Capacitance (C1) | 4.68 | fF | C1 also referred as Cm | ||
| Motional Inductance (L1) | 5,048,571 | mH | L1 also referred as Lm | ||
| Drive Level | 0.1 | 0.5 | µW | ||
| Crystal sensitivity to closed-loop oscillator loading (Ts) | 125 | 140 | ppm/pF | Refer to Note #3 | |
| Q value | 13000 | Quality Factor | |||
| Aging @ +25°C±3°C [First Year] | -3 | +3 | ppm |
Relative to post reflow measured frequency |
|
| Aging @ +25°C±3°C [Over 10-years] | - 10 | +10 | ppm |
Relative to post reflow measured frequency |
|
| Insulation Resistance | 500 | M? | @ 100Vdc | ||
ABS07W-32.768KHZ-J-2-T晶振 特點
極低的電鍍負載為3.0pF，非常適合可穿戴設備;
無線和物聯網應用
•同時優化了長時間運行的ESR
溫度范圍

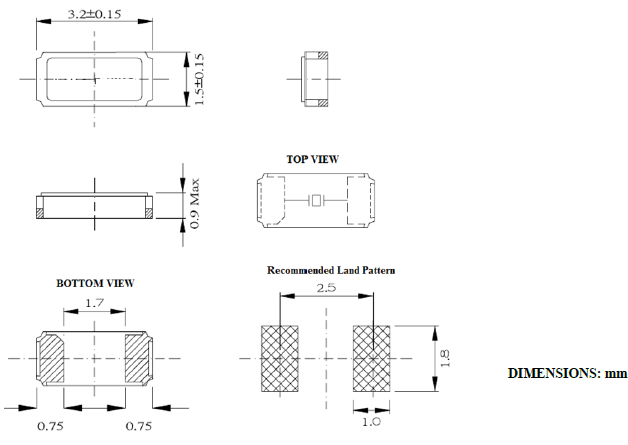

•微型3.2x1.5x0.9mmSMD封裝，非常適合
空間受限設計
•可與±10ppm設置公差
•接縫密封包裝，長期可靠
更多相關美國Abracon晶振型號| 歐美晶振原廠編碼 | 廠家 | 型號 | 系列 | 頻率 |
| ABS25-32.768KHZ-T | Abracon晶振 | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS25-32.768KHZ-6-T | Abracon晶振 | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS25-32.768KHZ-1-T | AbraconSMD無源晶體 | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS25-32.768KHZ-6-1-T | AbraconSMD無源晶體 | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS10-32.768KHZ-T | Abracon晶振 | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS10-32.768KHZ-7-T | Abracon晶振 | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS10-32.768KHZ-9-T | Abracon晶振 | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS09-32.768KHZ-9-T | Abracon晶振 | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS09-32.768KHZ-T | Abracon晶振 | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS10-32.768KHZ-1-T | Abracon晶振 | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS09-32.768KHZ-7-T | Abracon晶振 | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS09-32.768KHZ-1-T | Abracon晶振 | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS25-32.768KHZ-4-T | Abracon晶振 | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS25-32.000KHZ-T | Abracon晶振 | ABS25 | kHz Crystal (Tuning Fork) | 32kHz |
| ABS25-38.000KHZ-T | Abracon晶振 | ABS25 | kHz Crystal (Tuning Fork) | 38kHz |
| ABS25-60.000KHZ-T | Abracon晶振 | ABS25 | kHz Crystal (Tuning Fork) | 60kHz |
| ABS25-100.000KHZ-T | Abracon晶振 | ABS25 | kHz Crystal (Tuning Fork) | 100kHz |
| ABS10-32.768KHZ-4-T | Abracon晶振 | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS09-32.768KHZ-4-T | Abracon晶振 | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS07W-32.768KHZ-D-1-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS07W-32.768KHZ-D-2-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS07W-32.768KHZ-J-2-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS07W-32.768KHZ-J-1-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS07W-32.768KHZ-K-2-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABS07W-32.768KHZ-K-1-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz |
