- 編號：24507390
- 頻率：45MHz
- 尺寸：13.20mmx13.20mm
MXO45HSLV-3C-45M0000,6G網絡設備晶振,CTS西迪斯晶振
MXO45HSLV-3C-45M0000,6G網絡設備晶振,CTS西迪斯晶振，美國CTS晶振，進口晶振，型號MXO45HSLV，編碼為MXO45HSLV-3C-45M0000，頻率為：45.000MHz，尺寸：13.213.25.5mm，2.206637g，是傳統的通孔時鐘振蕩器，有源晶振，...
TXC,NDK,希華.jpg)

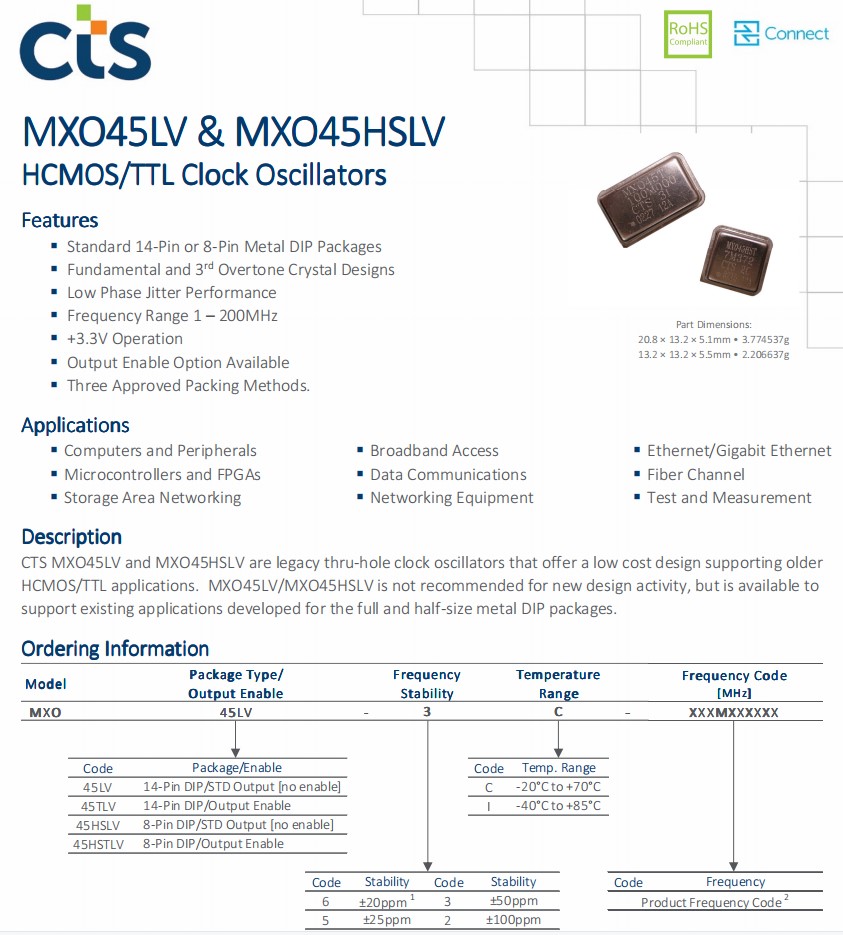

MXO45HSLV-3C-45M0000,6G網絡設備晶振,CTS西迪斯晶振，美國CTS晶振，進口晶振，型號MXO45HSLV，編碼為MXO45HSLV-3C-45M0000，頻率為：45.000MHz，尺寸：13.2×13.2×5.5mm，2.206637g，是傳統的通孔時鐘振蕩器，有源晶振，石英晶體振蕩器，提供了一個低成本的設計，支持舊的HCMOS/TTL應用程序。MXO45LV/MXO45HSLV不推薦用于新的設計活動，但可用于支持為全尺寸和半尺寸金屬DIP包開發的現有應用程序。特點標準14針或8針金屬芯片封裝，基本和第三泛音晶體設計，低相位抖動性能，+3.3V操作，輸出啟用選項可用，三種批準的包裝方法。應用應用，計算機和外設，微控制器和FPGAs，存儲區域網絡，寬帶訪問，數據通信，網絡設備，以太網/千兆以太網，光纖通道，測試和測量。
格發TXC,NDK,希華.jpg)
MXO45HSLV-3C-45M0000,6G網絡設備晶振,CTS西迪斯晶振，參數表
| Frequency Stability | |||||||||
| PARAMETER | SYMBOL | CONDITIONS | MIN | TYP | MAX | UNIT | |||
| Frequency Range |
 O |
- | 1 - 200 | MHz | |||||
| Freq uency Stability | Δf/fO | - | 20, 25, 50 or 100 | ±ppm | |||||
| Aging | Δf/f25 | First Year @ +25°C, nominal VCC -5 | ±3 | 5 | ppm | ||||
| Inclusive of initial tolerance at time | of shipment, changes | in supply voltage, load, temperature and 1st year aging. | |||||||
| Output Parameters | |||||||||
| PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNIT | |||||||||
| Output Type | - | - | HCMOS | - | |||||
| Output Load | 1.0MHz to 50MHz [CMOS Load] - | 15 | 30 | ||||||
| CL | 50.001MHz to 80MHz [CMOS Load] - | 15 | 15 | pF | |||||
| 80.001MHz to 200MHz [CMOS Load] - | 15 | 15 | |||||||
| 1.0MHz to 200MHz [TTL Load] - | - | 10 | TTL | ||||||
| VOH | CMOS Load | 0.9VCC 2.4 | - | - | |||||
| O utput Voltage Levels | 10TTL Load | - | - | - | V | ||||
| VOL | CMOS Load | - | - | 0.1VCC | |||||
| 10TTL Load | - | 0.4 | |||||||
| O utput Current Levels | IOH | VOH = 2.2V, VCC = 3.3V VOL = 0.4V, VCC = 3.3V | - | - | -8 | mA | |||
| IOL | - | - | 8 | ||||||
| O utput Duty Cyc le | SYM | @ 50% Level 45 | - | 55 | % | ||||
| Rise and Fall Time | @ 10%/90% Levels [tested load noted for TYP values.] | ||||||||
| 1.0MHz to 20MHz [CL = 30pF] - | 8 | 10 | |||||||
| TR, TF | 20.001MHz to 80MHz [CL = 15pF] 80.001MHz to 125MHz [CL = 15pF] | - | 5 | 8 | ns | ||||
| - | 2.5 | 5 | |||||||
| 125.001MHz to 200MHz [CL = 15pF] - | - | 2 | |||||||
| Start Up Time | TS | Application of VCC, CL = 15pF - | 5 | 10 | ms | ||||
MXO45HSLV-3C-45M0000,6G網絡設備晶振,CTS西迪斯晶振
特點：

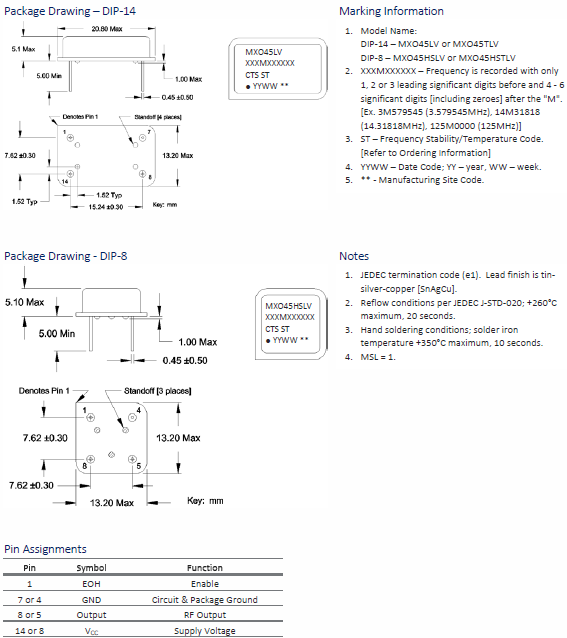

標準14引腳或8引腳金屬DIP封裝
基礎和第三序曲水晶設計
低相位抖動性能
頻率范圍1–200MHz有源晶振
+3.3V操作
輸出啟用選項可用 有源晶振
三種批準的包裝方法。
應用程序：
計算機和外圍設備
微控制器和FPGA
存儲區域網絡
寬帶接入
數據通信
網絡設備
以太網/千兆以太網
光纖通道
測試和測量
| 原廠代碼 | 晶振廠家 | 型號 | 頻率 | 頻率穩定度 | 包裝/封裝 |
| MXO45HSLV-2C-50M0000 | CTS晶振 | MXO45HSLV | 50MHz | ±100ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-2C-1M0000 | CTS晶振 | MXO45HSLV | 1MHz | ±100ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-2I-20M0000 | CTS晶振 | MXO45HSLV | 20MHz | ±100ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3C-12M2880 | CTS晶振 | MXO45HSLV | 12.288MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3C-13M0000 | CTS晶振 | MXO45HSLV | 13MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3C-20M0000 | CTS晶振 | MXO45HSLV | 20MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3C-25M0000 | CTS晶振 | MXO45HSLV | 25MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3C-40M0000 | CTS晶振 | MXO45HSLV | 40MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3C-45M0000 | CTS晶振 | MXO45HSLV | 45MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3C-50M0000 | CTS晶振 | MXO45HSLV | 50MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3I-20M0000 | CTS晶振 | MXO45HSLV | 20MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3I-25M0000 | CTS晶振 | MXO45HSLV | 25MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-3I-40M0000 | CTS晶振 | MXO45HSLV | 40MHz | ±50ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
| MXO45HSLV-2C-25M0000 | CTS晶振 | MXO45HSLV | 25MHz | ±100ppm | 8-DIP, 4 Leads (Half Size, Metal Can) |
