首頁歐美晶振ECLIPTEK晶振Ecliptek美國晶振,E1WS高精度音叉晶體,E1WSDA12-32.768K TR智能手機晶振
pdfs

    Ecliptek美國晶振,E1WS高精度音叉晶體,E1WSDA12-32.768K TR智能手機晶振

  • 編號：73063522
  • 頻率：32.768KHz
  • 尺寸：8038mm
  • RoHS
  • RoHS2
Ecliptek美國晶振,E1WS高精度音叉晶體,E1WSDA12-32.768KTR智能手機晶振，美國日蝕晶振公司，高端晶振，無源晶振，貼片晶振，音叉晶振，32.768KHz晶振，8038晶振，四腳晶振，電腦晶振，收音機晶振，美國晶振，進口晶振...


Ecliptek美國晶振,E1WS高精度音叉晶體,E1WSDA12-32.768K TR智能手機晶振，美國日蝕晶振公司，高端晶振，無源晶振，貼片晶振，音叉晶振，32.768KHz晶振，8038晶振，四腳晶振，電腦晶振，收音機晶振，美國晶振，進口晶振，通訊設備晶振，醫療設備晶振，電話機晶振，電腦晶振，石英晶振，智能手機晶振，藍牙設備晶振，歐美晶振，具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。

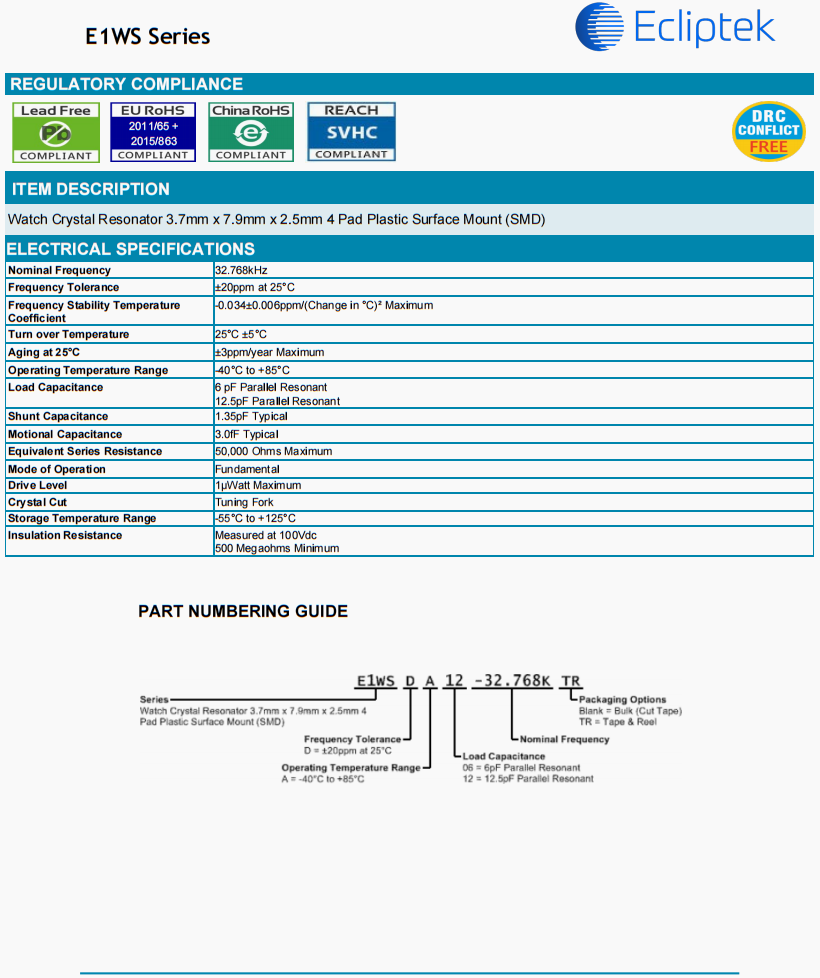

Ecliptek美國晶振,E1WS高精度音叉晶體,E1WSDA12-32.768K TR智能手機晶振
標稱頻率 32.768KHz
頻率容差 ±20ppm at 25°C
頻率穩定度 -0.034±0.006ppm/(Change in °C)² Maximum
老化 ±3ppm/year Maximum
工作溫度范圍 -40°C to +85°C
負載電容 6 pF Parallel Resonant
12.5pF Parallel Resonant
分流電容 1.35pF Typical
運動電容 3.0fF Typical
等效串聯電阻 50,000 Ohms Maximum
工作模式 Fundamental
驅動電平 1µWatt Maximum
晶體切割 Tuning Fork
儲存溫度范圍 -55°C to +125°C
絕緣電阻 Measured at 100Vdc
500 Megaohms Minimum


Ecliptek美國晶振,E1WS高精度音叉晶體,E1WSDA12-32.768K TR智能手機晶振


編碼 品牌 型號 工作溫度 頻率 頻率穩定度 頻率容差 負載電容
E1SAA12-24.000M Ecliptek E1S 0°C ~ 70°C 24 MHz ±100ppm ±50ppm 12 pF
E1SAA12-24.000M TR Ecliptek E1S 0°C ~ 70°C 24 MHz ±100ppm ±50ppm 12 pF
E1SAA12-30.000M TR Ecliptek E1S 0°C ~ 70°C 30 MHz ±100ppm ±50ppm 12 pF
E1SAA18-12.000M Ecliptek E1S 0°C ~ 70°C 12 MHz ±100ppm ±50ppm 18 pF
E1SAA18-16.000M TR Ecliptek E1S 0°C ~ 70°C 16 MHz ±100ppm ±50ppm 18 pF
E1SAA18-24.000M TR Ecliptek E1S 0°C ~ 70°C 24 MHz ±100ppm ±50ppm 18 pF
E1SAA18-25.000M TR Ecliptek E1S 0°C ~ 70°C 25 MHz ±100ppm ±50ppm 18 pF
E1SAA20-5.000M TR Ecliptek E1S 0°C ~ 70°C 5 MHz ±100ppm ±50ppm 20 pF
E1SBA18-16.000M TR Ecliptek E1S -20°C ~ 70°C 16 MHz ±100ppm ±50ppm 18 pF
E1SBA18-25.000M TR Ecliptek E1S -20°C ~ 70°C 25 MHz ±100ppm ±50ppm 18 pF
E1SBA18-27.000M TR Ecliptek E1S -20°C ~ 70°C 27 MHz ±100ppm ±50ppm 18 pF
E1SBA18-3.6864M TR Ecliptek E1S -20°C ~ 70°C 3.6864 MHz ±100ppm ±50ppm 18 pF
E1SBA18-7.3728M TR Ecliptek E1S -20°C ~ 70°C 7.3728 MHz ±100ppm ±50ppm 18 pF
E1SBA18-8.000M TR Ecliptek E1S -20°C ~ 70°C 8 MHz ±100ppm ±50ppm 18 pF
E1SBA20-12.000M Ecliptek E1S -20°C ~ 70°C 12 MHz ±100ppm ±50ppm 20 pF
E1SBA20-12.000M TR Ecliptek E1S -20°C ~ 70°C 12 MHz ±100ppm ±50ppm 20 pF
E1SCA12-24.000M Ecliptek E1S -40°C ~ 85°C 24 MHz ±100ppm ±50ppm 12 pF
E1SCA12-3.6864M TR Ecliptek E1S -40°C ~ 85°C 3.6864 MHz ±100ppm ±50ppm 12 pF
E1SCA18-14.7456M TR Ecliptek E1S -40°C ~ 85°C 14.7456 MHz ±100ppm ±50ppm 18 pF
E1SCA18-20.000M TR Ecliptek E1S -40°C ~ 85°C 20 MHz ±100ppm ±50ppm 18 pF
E1SCA18-3.6864M TR Ecliptek E1S -40°C ~ 85°C 3.6864 MHz ±100ppm ±50ppm 18 pF
E1SCA18-4.000M TR Ecliptek E1S -40°C ~ 85°C 4 MHz ±100ppm ±50ppm 18 pF
E1SCA18-7.3728M TR Ecliptek E1S -40°C ~ 85°C 7.3728 MHz ±100ppm ±50ppm 18 pF
E1SCA18-8.000M TR Ecliptek E1S -40°C ~ 85°C 8 MHz ±100ppm ±50ppm 18 pF
E1SCA32-12.000M Ecliptek E1S -40°C ~ 85°C 12 MHz ±100ppm ±50ppm 32 pF
E1SDA12-25.000M TR Ecliptek E1S 0°C ~ 70°C 25 MHz ±50ppm ±30ppm 12 pF
E1SDA18-24.576M Ecliptek E1S 0°C ~ 70°C 24.576 MHz ±50ppm ±30ppm 18 pF
E1SDA18-25.000M TR Ecliptek E1S 0°C ~ 70°C 25 MHz ±50ppm ±30ppm 18 pF
E1SEA18-12.000M TR Ecliptek E1S -20°C ~ 70°C 12 MHz ±50ppm ±30ppm 18 pF
E1SEA18-25.000M Ecliptek E1S -20°C ~ 70°C 25 MHz ±50ppm ±30ppm 18 pF
E1SEA18-28.6363M TR Ecliptek E1S -20°C ~ 70°C 28.6363 MHz ±50ppm ±30ppm 18 pF
E1SEA18-3.6864M Ecliptek E1S -20°C ~ 70°C 3.6864 MHz ±50ppm ±30ppm 18 pF
E1SEA18-4.2944M TR Ecliptek E1S -20°C ~ 70°C 4.2944 MHz ±50ppm ±30ppm 18 pF
E1SEA20-25.000M Ecliptek E1S -20°C ~ 70°C 25 MHz ±50ppm ±30ppm 20 pF
E1SEA20-4.000M TR Ecliptek E1S -20°C ~ 70°C 4 MHz ±50ppm ±30ppm 20 pF
E1SEA20-8.000M Ecliptek E1S -20°C ~ 70°C 8 MHz ±50ppm ±30ppm 20 pF
E1SEA20-8.000M TR Ecliptek E1S -20°C ~ 70°C 8 MHz ±50ppm ±30ppm 20 pF
E1SEA40-8.704M TR Ecliptek E1S -20°C ~ 70°C 8.704 MHz ±50ppm ±30ppm 40 pF
E1SFA12-3.6864M TR Ecliptek E1S -40°C ~ 85°C 3.6864 MHz ±50ppm ±30ppm 12 pF
E1SFA16-6.290M TR Ecliptek E1S -40°C ~ 85°C 6.29 MHz ±50ppm ±30ppm 16 pF
E1SFA18-12.000M TR Ecliptek E1S -40°C ~ 85°C 12 MHz ±50ppm ±30ppm 18 pF
E1SFA18-14.31818M TR Ecliptek E1S -40°C ~ 85°C 14.31818 MHz ±50ppm ±30ppm 18 pF
E1SFA18-25.000M TR Ecliptek E1S -40°C ~ 85°C 25 MHz ±50ppm ±30ppm 18 pF
E1SFA18-3.6864M Ecliptek E1S -40°C ~ 85°C 3.6864 MHz ±50ppm ±30ppm 18 pF
E1SFA18-7.3728M TR Ecliptek E1S -40°C ~ 85°C 7.3728 MHz ±50ppm ±30ppm 18 pF
E1SFA18-8.000M TR Ecliptek E1S -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 18 pF
E1SFA20-25.000M Ecliptek E1S -40°C ~ 85°C 25 MHz ±50ppm ±30ppm 20 pF
E1SFAS-24.000M TR Ecliptek E1S -40°C ~ 85°C 24 MHz ±50ppm ±30ppm
E1SGA18-14.7456M TR Ecliptek E1S 0°C ~ 70°C 14.7456 MHz ±30ppm ±15ppm 18 pF
E1SGA18-25.000M TR Ecliptek E1S 0°C ~ 70°C 25 MHz ±30ppm ±15ppm 18 pF
E1SHA10-29.950M TR Ecliptek E1S -20°C ~ 70°C 29.95 MHz ±30ppm ±15ppm 10 pF
E1SHA20-25.000M TR Ecliptek E1S -20°C ~ 70°C 25 MHz ±30ppm ±15ppm 20 pF
E1SJA16-14.31818M Ecliptek E1S -40°C ~ 85°C 14.31818 MHz ±30ppm ±15ppm 16 pF
E1SJA18-24.000M TR Ecliptek E1S -40°C ~ 85°C 24 MHz ±30ppm ±15ppm 18 pF
E1SJA18-25.000M TR Ecliptek E1S -40°C ~ 85°C 25 MHz ±30ppm ±15ppm 18 pF
E1SJA18-4.000M TR Ecliptek E1S -40°C ~ 85°C 4 MHz ±30ppm ±15ppm 18 pF
E1SJA20-25.000M Ecliptek E1S -40°C ~ 85°C 25 MHz ±30ppm ±15ppm 20 pF
E1SMA14-25.000M Ecliptek E1S -40°C ~ 85°C 25 MHz ±20ppm ±15ppm 14 pF
E1SMA18-25.000M Ecliptek E1S -40°C ~ 85°C 25 MHz ±20ppm ±15ppm 18 pF
E1SMA18-27.000M Ecliptek E1S -40°C ~ 85°C 27 MHz ±20ppm ±15ppm 18 pF
E1SMA18-27.000M TR Ecliptek E1S -40°C ~ 85°C 27 MHz ±20ppm ±15ppm 18 pF
E1SNA16-25.000M TR Ecliptek E1S 0°C ~ 70°C 25 MHz ±15ppm ±10ppm 16 pF
E1SNA18-25.000M TR Ecliptek E1S 0°C ~ 70°C 25 MHz ±15ppm ±10ppm 18 pF
E1SSA18-5.000M TR Ecliptek E1S -40°C ~ 105°C 5 MHz ±50ppm ±30ppm 18 pF
E1SSA20-10.000M Ecliptek E1S -40°C ~ 105°C 10 MHz ±50ppm ±30ppm 20 pF
E1SSA20-10.000M TR Ecliptek E1S -40°C ~ 105°C 10 MHz ±50ppm ±30ppm 18 pF
E1WSDA12-32.768K Ecliptek E1WS -40°C ~ 85°C 32.768 kHz   ±20ppm 12.5 pF
E1WSDA12-32.768K TR Ecliptek E1WS -40°C ~ 85°C 32.768 kHz   ±20ppm 12.5 pF
EA1216MA08-25.000M TR Ecliptek EA1216 -40°C ~ 85°C 25 MHz ±20ppm ±15ppm 8 pF
EA1620MA10-25.000M TR Ecliptek EA1620 -40°C ~ 85°C 25 MHz ±20ppm ±15ppm 10 pF
EA3560LA20-25.000M TR Ecliptek EA3560 -20°C ~ 70°C 25 MHz ±20ppm ±15ppm 20 pF
EA5070CA12-24.000M TR Ecliptek EA5070 -40°C ~ 85°C 24 MHz ±100ppm ±50ppm 12 pF
EA5070CA18-20.000M TR Ecliptek EA5070 -40°C ~ 85°C 20 MHz ±100ppm ±50ppm 18 pF
EA5070CAS-8.000M TR Ecliptek EA5070 -40°C ~ 85°C 8 MHz ±100ppm ±50ppm 8 pF
EA5070FA16-22.5792M TR Ecliptek EA5070 -40°C ~ 85°C 22.5792 MHz ±50ppm ±30ppm 16 pF
EA5070FA18-10.000M Ecliptek EA5070 -40°C ~ 85°C 10 MHz ±50ppm ±30ppm 18 pF
EA5070FA18-14.31818M Ecliptek EA5070 -40°C ~ 85°C 14.31818 MHz ±50ppm ±30ppm 18 pF
EA5070FA18-24.000M TR Ecliptek EA5070 -40°C ~ 85°C 24 MHz ±50ppm ±30ppm 18 pF
EA5070FA18-25.000M TR Ecliptek EA5070 -40°C ~ 85°C 25 MHz ±50ppm ±30ppm 18 pF
EA5070FA18-27.000M TR Ecliptek EA5070 -40°C ~ 85°C 27 MHz ±50ppm ±30ppm 18 pF
EA5070FA20-7.3728M Ecliptek EA5070 -40°C ~ 85°C 7.3728 MHz ±50ppm ±30ppm 20 pF
EA5070GA18-25.000625M Ecliptek EA5070 0°C ~ 70°C 25.000625 MHz ±30ppm ±15ppm 18 pF
EA5070GA18-25.000625M TR Ecliptek EA5070 0°C ~ 70°C 25.000625 MHz ±30ppm ±15ppm 18 pF
EA5070GA20-7.3728M Ecliptek EA5070 0°C ~ 70°C 7.3728 MHz ±30ppm ±15ppm 20 pF
EA5070JA18-25.000625M TR Ecliptek EA5070 -40°C ~ 85°C 25.000625 MHz ±30ppm ±15ppm 18 pF
EA5070JA20-14.31818M TR Ecliptek EA5070 -40°C ~ 85°C 14.31818 MHz ±30ppm ±15ppm 20 pF
EA5070JA20-6.000M TR Ecliptek EA5070 -40°C ~ 85°C 6 MHz ±30ppm ±15ppm 20 pF
EA5070PA20-8.000M Ecliptek EA5070 -20°C ~ 70°C 8 MHz ±15ppm ±10ppm 20 pF
EB2025YA10-25.000M TR Ecliptek EB2025 -40°C ~ 125°C 25 MHz ±50ppm ±30ppm 10 pF
EB3250AYA08-25.000M TR Ecliptek EB3250A -40°C ~ 125°C 25 MHz ±50ppm ±30ppm 8 pF
EB8WSDX12-32.768K TR Ecliptek EB8WS -40°C ~ 125°C 32.768 kHz   ±20ppm 12.5 pF
