首頁進口晶振愛普生晶振27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm

27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm

編號：81181926
頻率：27MHZ
尺寸：2.0*1.6mm

27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm,尺寸為2016mm,頻率為27MHZ，愛普生進口晶振，無源晶體，石英晶體諧振器，水晶振動子，無源貼片晶振，高質量晶振，低損耗晶振，石英水晶振子，可穿戴晶振，小型...

27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm,尺寸為2016mm,頻率為27MHZ，愛普生進口晶振，無源晶體，石英晶體諧振器，水晶振動子，無源貼片晶振，高質量晶振，低損耗晶振，石英水晶振子，可穿戴晶振，小型通信專用晶振，FA-128已經作為通信模塊的參考時鐘商業化，它需要高精度，作為無線通信的時鐘，以及需要微型化應用的微計算機（TWS（真無線立體聲）、智能手表等）。使用多年培養的元素加工技術創建的產品有助于提高客戶系統的性能。
進口晶振產品主要應用范圍：小型通信模塊為消費和工業應用的可穿戴設備時鐘為單片機.27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm.

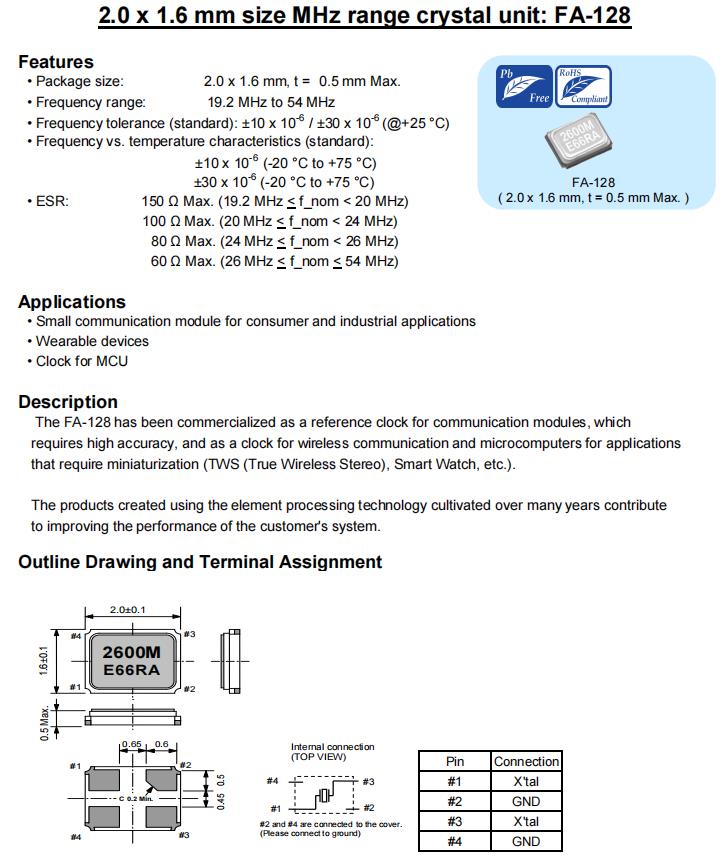

27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm 參數表

愛普生晶振	單位	FA-128晶振	石英晶振基本條件
標準頻率	f_nom	27MHZ	標準頻率
儲存溫度	T_stg	-40°C ～ +125°C	裸存
工作溫度	T_use	-40°C ～ +85°C	標準溫度
激勵功率	DL	200μW Max.	推薦:1μW ～ 100μW
頻率公差	f_— l	±50 × 10-6 (標準), (±15 × 10-6 ～ ±50 × 10-6 可用)	+25°C 對于超出標準的規格說明, 請聯系我們以便獲取相關的信息, http://m.ike-digital.com/
頻率溫度特征	f_tem	±30 × 10-6/-20°C ～ +70°C	超出標準的規格請聯系我們.
負載電容	CL	6PF	不同負載電容要求,請聯系我們.
串聯電阻(ESR)	R1	如下表所示	-40°C — +85°C, DL = 100μW
頻率老化	f_age	±5 × 10-6 / year Max.	+25°C,第一年

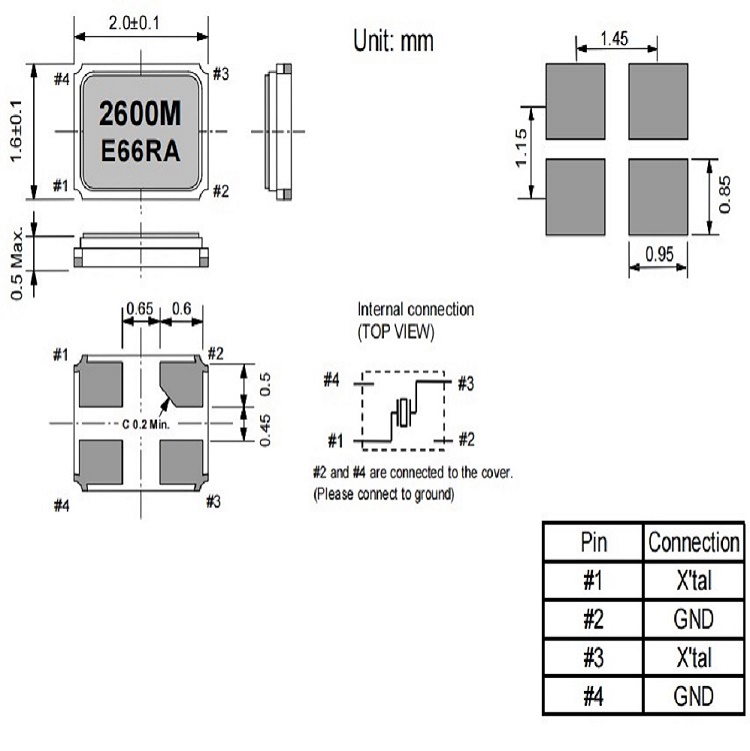

27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm 尺寸圖

Q22FA12800070晶振特點

包裝尺寸:2.0x1.6mm, t=0.5mmMax。

•頻率范圍:19.2MHz至54MHz

•頻率公差(標準):±10x10-6/±30x10-6(@+25°C)

•頻率與溫度特性(標準):

±10×10-6(-20°C至+75°C)

±30×10-6(-20°C至+75°C)

•ESR: 150Ω最大。(19.2 MHz< f_nom<20MHz)

100ΩMax。(20mhz< f_nom< 24mhz)

80ΩMax。(24 MHz< f_nom< 26MHz)

60ΩMax。(26 MHz< f_nom< 54MHz)

更多相關日本愛普生晶振型號

編碼	尺寸	型號	頻率	負載	頻率 @+25°C	工作溫度
Q22FA12800038	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-50 ppm	-20 to +75 °C
Q22FA12800043	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800044	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	16 pF	+/-15 ppm	-40 to +85 °C
Q22FA12800045	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8.5 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800047	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	12 pF	+/-10 ppm	-20 to +85 °C
Q22FA12800053	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800054	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800061	2 x 1.6 x 0.5mm	FA-128	44.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800062	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	8 pF	+/-30 ppm	-20 to +70 °C
Q22FA12800064	2 x 1.6 x 0.5mm	FA-128	37.400000 MHz	18 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800067	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800070	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	7 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800085	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800089	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	8 pF	+/-30 ppm	-30 to +85 °C
Q22FA12800090	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800091	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	7 pF	+/-50 ppm	-20 to +70 °C
Q22FA12800092	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800094	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800099	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA12800100	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA12800101	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800105	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12.5 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800107	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-50 ppm	-20 to +75 °C
Q22FA12800108	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800112	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-15 ppm	-20 to +75 °C
Q22FA12800114	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800116	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	+/-15 ppm	-20 to +70 °C
Q22FA12800119	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-20 ppm	-20 to +75 °C
Q22FA12800120	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800121	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	15 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800125	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	6 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800126	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	8 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800127	2 x 1.6 x 0.5mm	FA-128	24.576000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800129	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800131	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800132	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	15 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800135	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800137	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	9 pF	+/-20 ppm	-30 to +85 °C
Q22FA12800140	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800141	2 x 1.6 x 0.5mm	FA-128	20.000000 MHz	10 pF	+/-10 ppm	-20 to +70 °C
Q22FA12800143	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	6 pF	+/-50 ppm	-30 to +85 °C
Q22FA12800145	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800146	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800147	2 x 1.6 x 0.5mm	FA-128	38.400000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800148	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA12800149	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800150	2 x 1.6 x 0.5mm	FA-128晶振	48.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800152	2 x 1.6 x 0.5mm	FA-128	40.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800156	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	6 pF	+/-30 ppm	-30 to +85 °C
Q22FA12800158	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800159	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	12 pF	+/-27 ppm	-20 to +70 °C
Q22FA12800160	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800166	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800168	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	12.5 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800169	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800170	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800174	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-15 ppm	-30 to +85 °C
Q22FA12800182	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800183	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800184	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-30 ppm	-30 to +85 °C
Q22FA12800186	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	18 pF	+/-50 ppm	-20 to +70 °C
Q22FA12800187	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	16 pF	+/-30 ppm	-40 to +85 °C
Q22FA12800191	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q22FA12800197	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800201	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	18 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800202	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	6.7 pF	+/-10 ppm	-20 to +75 °C
Q22FA12800213	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	10 pF	+/-30 ppm	-40 to +85 °C
Q22FA12800214	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-30 ppm	-40 to +85 °C
Q22FA12800215	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800218	2 x 1.6 x 0.5mm	FA-128	30.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q22FA12800219	2 x 1.6 x 0.5mm	FA-128	30.000000 MHz	6 pF	+/-30 ppm	-30 to +85 °C
Q22FA12800222	2 x 1.6 x 0.5mm	FA-128	20.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q22FA12800225	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	9 pF	+/-30 ppm	-30 to +85 °C
Q22FA12800226	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
