- 編號：81339314
- 頻率：130.031746 MHz
- 尺寸：7.0x5.0mm
愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振
愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振，日本進口晶振，EPSON愛普生晶振，型號：VG7050EFN，編碼為：X1G0054910023，頻率為：130.031746MHz，小體積晶振尺寸：7.0x5.0mm，六腳貼片晶振...
TXC,NDK,希華.jpg)
愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振，日本進口晶振，EPSON愛普生晶振，型號：VG7050EFN，編碼為：X1G0054910023，頻率為：130.031746 MHz，小體積晶振尺寸：7.0x5.0mm，六腳貼片晶振，VCXO壓控晶體振蕩器，LV-PECL輸出差分晶體振蕩器，有源晶振，石英晶振，VG7050EFN差分晶振具有多種輸出功能，能夠輕易識別網絡信號以及精確的處理雙極信號。具有超小型，輕薄型，低抖動，低功耗，低相位噪聲，低電源電壓，低電平等特點。廣泛應用于：移動通訊設備，無線藍牙模塊，物聯網，安防設備，儀器儀表，路由器/交換機，以太網，物聯網等應用。
格發TXC,NDK,希華.jpg)

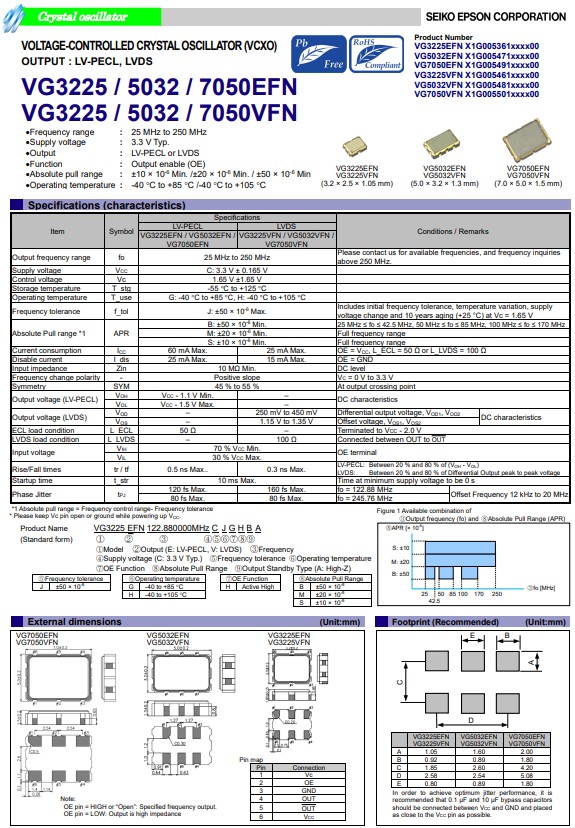

愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振，參數表
| 項目 | Item | Symbol | LV-PECL | LVDS | Conditions / Remarks | ||
| VG3225EFN / VG5032EFN / | VG3225VFN / VG5032VFN / | ||||||
| VG7050EFN | VG7050VFN | ||||||
| Output frequency range | fo | 25 MHz to 250 MHz | Please contact us for available frequencies, and frequency inquiries above 250 MHz. | ||||
| Supply voltage | VCC | C: 3.3 V ± 0.165 V | |||||
| Control voltage | Vc | 1.65 V ±1.65 V | |||||
| Storage temperature | T_stg | -55 °C to +125 °C | |||||
| Operating temperature | T_use | G: -40 °C to +85 °C, H: -40 °C to +105 °C | |||||
| Frequency tolerance | f_tol | J: ±50 × 10-6 Max. | Includes initial frequency tolerance, temperature variation, supply voltage change and 10 years aging (+25 °C) at Vc = 1.65 V | ||||
| B: ±50 × 10-6 Min. | 25 MHz ≤ fo ≤ 42.5 MHz, 50 MHz ≤ fo ≤ 85 MHz, 100 MHz ≤ fo ≤ 170 MHz | ||||||
| Absolute Pull range *1 | APR | M: ±20 × 10-6 Min. | Full frequency range | ||||
| S: ±10 × 10-6 Min. | Full frequency range | ||||||
| Current consumption | ICC | 60 mA Max. | 25 mA Max. | OE = VCC, L_ECL = 50 Ω or L_LVDS = 100 Ω | |||
| Disable current | I_dis | 25 mA Max. | 15 mA Max. | OE = GND | |||
| Input impedance | Zin | 10 MΩ Min. | DC level | ||||
| Frequency change polarity | - | Positive slope | VC = 0 V to 3.3 V | ||||
| Symmetry | SYM | 45 % to 55 % | At output crossing point | ||||
| Output voltage (LV-PECL) | VOH | VCC - 1.1 V Min. | – | DC characteristics | |||
| VOL | VCC - 1.5 V Max. | – | |||||
| Output voltage (LVDS) | VOD | – | 250 mV to 450 mV | Differential output voltage, VOD1, VOD2 | DC characteristics | ||
| VOS | – | 1.15 V to 1.35 V | Offset voltage, VOS1, VOS2 | ||||
| ECL load condition | L_ECL | 50 Ω | – | Terminated to VCC - 2.0 V | |||
| LVDS load condition | L_LVDS | – | 100 Ω | Connected between OUT to OUT | |||
| Input voltage | VIH | 70 % VCC Min. | OE terminal | ||||
| VIL | 30 % VCC Max. | ||||||
| Rise/Fall times | tr / tf | 0.5 ns Max.. | 0.3 ns Max. | LV-PECL: Between 20 % and 80 % of (VOH - VOL) | |||
| LVDS: Between 20 % and 80 % of Differential Output peak to peak voltage | |||||||
| Startup time | t_str | 10 ms Max. | Time at minimum supply voltage to be 0 s | ||||
| Phase Jitter | tPJ | 120 fs Max. | 160 fs Max. | fo = 122.88 MHz | Offset Frequency 12 kHz to 20 MHz | ||
| 80 fs Max. | 80 fs Max. | fo = 245.76 MHz | |||||
愛普生VG7050EFN差分晶振,X1G0054910023,VCXO壓控晶體振蕩器,6G無線晶振
差分晶振是普通貼片晶振所不能夠達到的，差分晶振具有低電平，低抖動，低功耗等特性。差分晶振作為目前行業中高要求，高技術石英晶體振蕩器，具有相位低，損耗低的特點，差分晶振使用于產品中能夠很容易地識別小信號，能夠從容精確地處理雙級信號，對外部電磁干擾(EMI)是高度免疫的。差分石英晶振滿足市場需求,實現高頻高精度等要求，更加保障了各種系統參考時鐘的可靠性。
| 產品編碼 | 壓控晶振 | 頻率 | 尺寸 | 輸出 | 電壓 |
| X1G0045611003 | VG7050ECN | 622.080000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V |
| X1G0045611005 | VG7050ECN | 622.080000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V |
| X1G0045611007 | VG7050ECN | 622.080000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 2.970 to 3.630 V |
| X1G0054910002 | VG7050EFN | 122.880000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910008 | VG7050EFN | 100.000000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910009 | VG7050EFN | 104.000000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910011 | VG7050EFN | 120.000000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910012 | VG7050EFN | 122.880000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910013 | VG7050EFN | 125.000000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910014 | VG7050EFN | 148.351600 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910015 | VG7050EFN | 148.351648 MHz | 有源晶振 | LV-PECL | 3.135 to 3.465 V |
| X1G0054910016 | VG7050EFN | 148.500000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910018 | VG7050EFN | 155.520000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910021 | VG7050EFN | 156.250000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910023 | VG7050EFN | 130.031746 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910030 | VG7050EFN | 160.000000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910601 | VG7050EFN | 204.800000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
| X1G0054910603 | VG7050EFN | 245.760000 MHz | 7.00 x 5.00 x 1.50 mm | LV-PECL | 3.135 to 3.465 V |
