石英晶體振蕩器
- 編號：54126508
- 頻率：32.768KHz
- 尺寸：7.0x1.5mm
FOX福克斯晶振,FKFSXEIHM0.032768-T3,6G儀器儀表設備晶振
FOX福克斯晶振,FKFSXEIHM0.032768-T3,6G儀器儀表設備晶振，美國進口晶振，F(xiàn)OX福克斯晶振，型號：FKFSXFormerFSXLF系列，編碼為：FKFSXEIHM0.032768-T3，小體積晶振尺寸7.0x1.5mm，四腳貼片石英晶振，32.768K貼片晶振，...
TXC,NDK,希華.jpg)
FOX福克斯晶振,FKFSXEIHM0.032768-T3,6G儀器儀表設備晶振，美國進口晶振，F(xiàn)OX福克斯晶振，型號：FKFSX Former FSXLF系列，編碼為：FKFSXEIHM0.032768-T3，小體積晶振尺寸7.0x1.5mm，四腳貼片石英晶振，32.768K貼片晶振，無源晶振，石英晶體諧振器，石英晶振，無鉛環保晶振，具有小體積輕薄型，耐熱及耐環境特點，被廣泛用于：通訊設備，時鐘晶振，電腦主板，鐘表電子，智能門鎖，儀器儀表設備，智能水電表，無線藍牙，數碼電子，計時產品等應用。
格發TXC,NDK,希華.jpg)

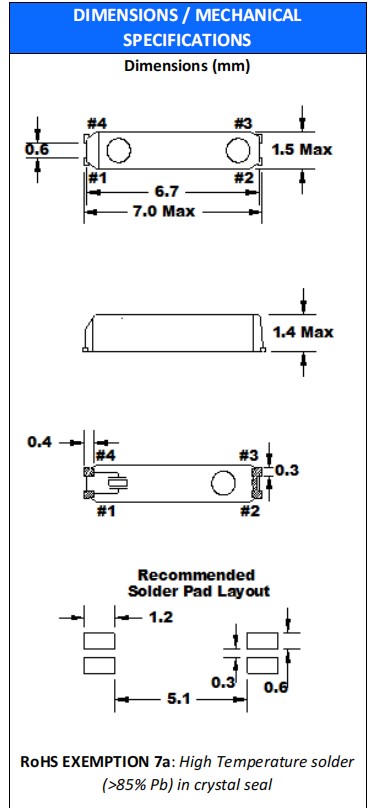

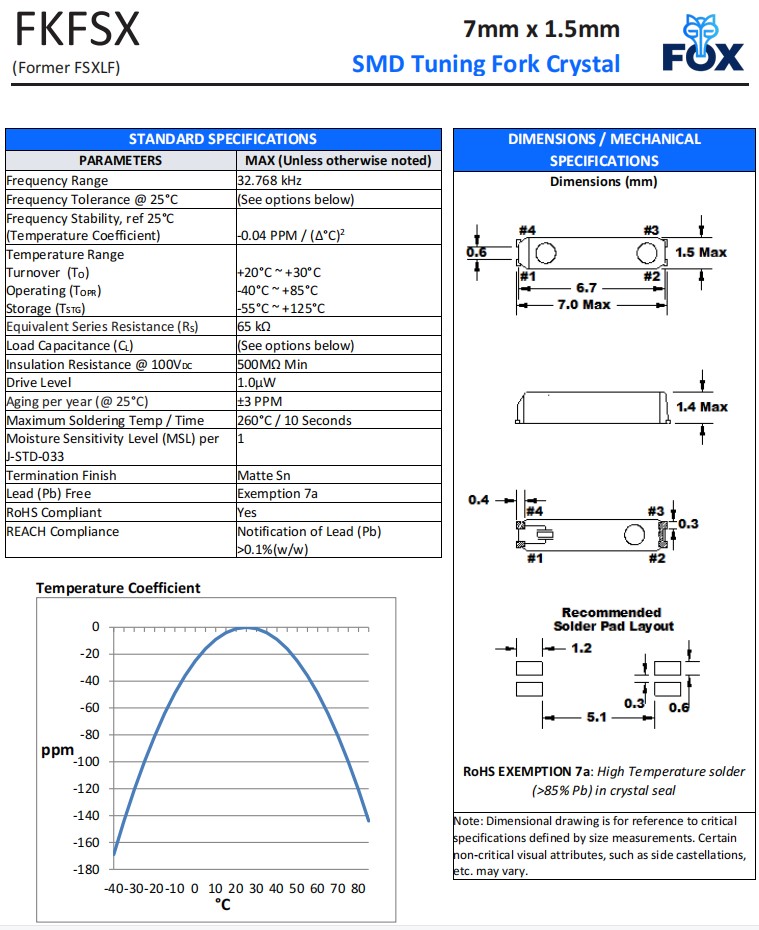

FOX福克斯晶振,FKFSXEIHM0.032768-T3,6G儀器儀表設備晶振，參數表
| STANDARD SPECIFICATIONS | |
| PARAMETERS | MAX (Unless otherwise noted) |
| Frequency Range | 32.768 kHz |
| Frequency Tolerance @ 25°C | (See options below) |
|
Frequency Stability, ref 25°C (Temperature Coefficient) |
-0.04 PPM / (?°C)2 |
|
Temperature Range Turnover (TO) Operating (TOPR) Storage (TSTG) |
+20°C ~ +30°C -40°C ~ +85°C -55°C ~ +125°C |
| Equivalent Series Resistance (RS) | 65 k? |
| Load Capacitance (CL) | (See options below) |
| Insulation Resistance @ 100VDC | 500M? Min |
| Drive Level | 1.0µW |
| Aging per year (@ 25°C) | ±3 PPM |
| Maximum Soldering Temp / Time | 260°C / 10 Seconds |
| Moisture Sensitivity Level (MSL) per J-STD-033 | 1 |
| Termination Finish | Matte Sn |
| Lead (Pb) Free | Exemption 7a |
| RoHS Compliant | Yes |
| REACH Compliance |
Notification of Lead (Pb) >0.1%(w/w) |
FOX福克斯晶振,FKFSXEIHM0.032768-T3,6G儀器儀表設備晶振
32.768K系列產品本身具有體積小,厚度薄,重量輕等特點,此音叉型石英晶體諧振器,晶振產品本身具備優良的耐熱性,耐環境特性,在辦公自動化,家電領域,移動通信領域可發揮優良的電氣特性,符合無鉛標準,滿足無鉛焊接的回流溫度曲線要求,金屬外殼的石英晶振使得產品在封裝時能發揮比陶瓷晶振外殼更好的耐沖擊性能.
| 原廠編碼 | 廠家 | 型號 | 頻率 | 包裝/封裝 |
| FX135A-327 | Fox福克斯晶振 | FX135A | 32.768kHz | 2-SMD, No Lead |
| FSXLF327 | Fox福克斯晶振 | FSXLF | 32.768kHz | 4-SMD, Flat Lead, 3 Leads |
| FQ5032B-12.000 | Fox福克斯晶振 | C5BQ | 12MHz | 4-SMD, No Lead |
| FQ5032B-25.000 | Fox晶振 | C5BQ | 25MHz | 4-SMD, No Lead |
| FQ7050B-8.000 | Fox福克斯晶振 | C7BQ | 8MHz | 4-SMD, No Lead |
| FQ7050B-7.3728 | Fox福克斯晶振 | C7BQ | 7.3728MHz | 4-SMD, No Lead |
| FQ1045A-6.000 | Fox福克斯晶振 | FQ1045A | 6MHz | 2-SMD, No Lead |
| FQ1045A-4.000 | Fox福克斯晶振 | FQ1045A | 4MHz | 2-SMD, No Lead |
| FQ3225B-12.000 | Fox福克斯晶振 | FQ3225B | 12MHz | 4-SMD, No Lead |
| FX252BS-16.000 | Fox福克斯晶振 | FX252B | 16MHz | 4-SMD, No Lead |
| FQ5032B-20.000 | Fox福克斯晶振 | C5BQ | 20MHz | 4-SMD, No Lead |
| FQ7050B-6.000 | Fox福克斯晶振 | C7BQ | 6MHz | 4-SMD, No Lead |
| FQ3225B-25.000 | Fox福克斯晶振 | FQ3225B | 25MHz | 4-SMD, No Lead |
| FQ1045A-3.6864 | Fox福克斯晶振 | FQ1045A | 3.6864MHz | 2-SMD, No Lead |
| FQ3225B-24.000 | Fox福克斯晶振 | FQ3225B | 24MHz | 4-SMD, No Lead |
| FX425B-12.000 | Fox福克斯晶振 | FX425B | 12MHz | 4-SMD, No Lead |
| FQ5032B-18.432 | Fox福克斯晶振 | C5BQ | 18.432MHz | 4-SMD, No Lead |
| FX252BS-24.000 | Fox福克斯晶振 | FX252B | 24MHz | 4-SMD, No Lead |
| FQ7050BR-7.3728 | Fox福克斯晶振 | C7BQ | 7.3728MHz | 4-SMD, No Lead |
| FX122-327 | Fox福克斯晶振 | FX122 | 32.768kHz | 2-SMD, No Lead |
| FQ5032B-24.576 | Fox福克斯晶振 | C5BQ | 24.576MHz | 4-SMD, No Lead |
| FQ5032B-24.000 | Fox福克斯晶振 | C5BQ | 24MHz | 4-SMD, No Lead |
| FQ5032B-16.000 | Fox福克斯晶振 | C5BQ | 16MHz | 4-SMD, No Lead |
| FQ5032BR-25.000 | Fox福克斯晶振 | C5BQ | 25MHz | 4-SMD, No Lead |
| FQ5032BR-12.000 | Fox福克斯晶振 | C5BQ | 12MHz | 4-SMD, No Lead |
| FQ5032BR-20.000 | Fox福克斯晶振 | C5BQ | 20MHz | 4-SMD, No Lead |
| FQ5032BR-24.000 | Fox福克斯晶振 | C5BQ | 24MHz | 4-SMD, No Lead |
| FQ7050B-10.000 | Fox福克斯晶振 | C7BQ | 10MHz | 4-SMD, No Lead |
| FQ7050BR-8.000 | Fox福克斯晶振 | C7BQ | 8MHz | 4-SMD, No Lead |
| FQ7050BR-6.000 | Fox福克斯晶振 | C7BQ | 6MHz | 4-SMD, No Lead |
| FQ3225B-16.000 | Fox福克斯晶振 | FQ3225B | 16MHz | 4-SMD, No Lead |
| FQ3225B-27.000 | Fox福克斯晶振 | FQ3225B | 27MHz | 4-SMD, No Lead |
| FQ3225BR-25.000 | Fox福克斯晶振 | FQ3225B | 25MHz | 4-SMD, No Lead |
| FQ3225BR-24.000 | Fox福克斯晶振 | FQ3225B | 24MHz | 4-SMD, No Lead |
| FQ3225BR-12.000 | Fox福克斯晶振 | FQ3225B | 12MHz | 4-SMD, No Lead |
| FQ1045AR-6.000 | Fox福克斯晶振 | FQ1045A | 6MHz | 2-SMD, No Lead |
| FQ1045AR-4.000 | Fox福克斯晶振 | FQ1045A | 4MHz | 2-SMD, No Lead |
| FQ1045AR-3.6864 | Fox福克斯晶振 | FQ1045A | 3.6864MHz | 2-SMD, No Lead |
| FX252BS-20.000 | Fox福克斯晶振 | FX252B | 20MHz | 4-SMD, No Lead |
| FQ5032BR-10.000 | Fox福克斯晶振 | C5BQ | 10MHz | 4-SMD, No Lead |
| FQ5032BR-16.000 | Fox福克斯晶振 | C5BQ | 16MHz | 4-SMD, No Lead |
| FX532B-10.000 | Fox福克斯晶振 | FX532B | 10MHz | 4-SMD, No Lead |
| FQ7050B-11.0592 | Fox福克斯晶振 | C7BQ | 11.0592MHz | 4-SMD, No Lead |
| FX425B-16.000 | Fox福克斯晶振 | FX425B | 16MHz | 4-SMD, No Lead |
| FQ5032B-19.6608 | Fox福克斯晶振 | C5BQ | 19.6608MHz | 4-SMD, No Lead |
| FQ5032B-14.7456 | Fox福克斯晶振 | C5BQ | 14.7456MHz | 4-SMD, No Lead |
| FQ5032B-10.000 | Fox福克斯晶振 | C5BQ | 10MHz | 4-SMD, No Lead |
| FQ3225B-20.000 | Fox福克斯晶振 | FQ3225B | 20MHz | 4-SMD, No Lead |
| FQ3225BR-16.000 | Fox福克斯晶振 | FQ3225B | 16MHz | 4-SMD, No Lead |
| FQ3225BR-20.000 | Fox福克斯晶振 | FQ3225B | 20MHz | 4-SMD, No Lead |
| FQ1045A-4.9152 | Fox福克斯晶振 | FQ1045A | 4.9152MHz | 2-SMD, No Lead |
| 603-12-67 | Fox福克斯晶振 | FX325BS | 12MHz | 4-SMD, No Lead |
| 617-24.572675-1 | Fox福克斯晶振 | FX216B | 24.572675MHZ | 4-SMD, No Lead |
| FX532B-11.0592 | 進口晶振 | FX532B | 11.0592MHz | 4-SMD, No Lead |
| FX532B-12.000 | Fox福克斯晶振 | FX532B | 12MHz | 4-SMD, No Lead |
| FX532B-16.000 | Fox福克斯晶振 | FX532B | 16MHz | 4-SMD, No Lead |
| FX532B-20.000 | Fox福克斯晶振 | FX532B | 20MHz | 4-SMD, No Lead |
| FX532B-24.000 | Fox福克斯晶振 | FX532B | 24MHz | 4-SMD, No Lead |
| FX532B-24.576 | Fox福克斯晶振 | FX532B | 24.576MHz | 4-SMD, No Lead |
| FX425B-20.000 | Fox福克斯晶振 | FX425B | 20MHz | 4-SMD, No Lead |
| FX425B-24.000 | Fox福克斯晶振 | FX425B | 24MHz | 4-SMD, No Lead |
| FX425B-24.576 | Fox福克斯晶振 | FX425B | 24.576MHz | 4-SMD, No Lead |
| 217-3.579545-12 | Fox福克斯晶振 | FC | 3.579545MHz | 4-SMD, No Lead |
| 603-25-203 | Fox福克斯晶振 | FX325BS | 25MHz | 4-SMD, No Lead |
| FPXLF0368S | Fox福克斯晶振 | FPXLF | 3.6864MHz | 4-SMD, No Lead |
| FPXLF036S | Fox福克斯晶振 | FPXLF | 3.579545MHz | 4-SMD, No Lead |
| FPXLF040 | Fox福克斯晶振 | FPXLF | 4MHz | 4-SMD, No Lead |
| FPXLF049-20 | Fox福克斯晶振 | FPXLF | 4.9152MHz | 4-SMD, No Lead |
| FPXLF073-20 | Fox福克斯晶振 | FPXLF | 7.3728MHz | 4-SMD, No Lead |
| FPXLF080 | Fox福克斯晶振 | FPXLF | 8MHz | 4-SMD, No Lead |
| FPXLF080-20 | Fox福克斯晶振 | FPXLF | 8MHz | 4-SMD, No Lead |
| FPXLF100-20 | Fox福克斯晶振 | FPXLF | 10MHz | 4-SMD, No Lead |
| FPXLF115-20 | Fox福克斯晶振 | FPXLF | 11.0592MHz | 4-SMD, No Lead |
| FPXLF120-20 | Fox福克斯晶振 | FPXLF | 12MHz | 4-SMD, No Lead |
| FPXLF143-20 | Fox福克斯晶振 | FPXLF | 14.31818MHz | 4-SMD, No Lead |
| FPXLF160 | Fox福克斯晶振 | FPXLF | 16MHz | 4-SMD, No Lead |
| FPXLF160-20 | Fox福克斯晶振 | FPXLF | 16MHz | 4-SMD, No Lead |
| FPXLF200-20 | Fox福克斯晶振 | FPXLF | 20MHz | 4-SMD, No Lead |
| FPXLF250F-20 | Fox福克斯晶振 | FPXLF | 25MHz | 4-SMD, No Lead |
| 603-40-48 | Fox福克斯晶振 | FX325BS | 40MHz | 4-SMD, No Lead |
| 603-25-261 | Fox福克斯晶振 | FX325BS | 25MHz | 4-SMD, No Lead |
