DSX320G車載晶振,KDS高精度晶振,1ZCM12000BC0A

編號：99982907
頻率：12MHZ
尺寸：3.2*2.5mm

DSX320G車載晶振,KDS高精度晶振,1ZCM12000BC0A，尺寸3225mm,頻率12MHZ，負載電容8pF，大真空株式會社，日本大真空晶振，KDS大真空晶體，KDS無源晶振，3225mm貼片晶振，SMD晶振，水晶振動子，貼片無源晶振，無源晶振，...

DSX320G車載晶振,KDS高精度晶振,1ZCM12000BC0A，尺寸3225mm,頻率12MHZ，負載電容8pF，大真空株式會社，日本大真空晶振，KDS大真空晶體，KDS無源晶振，3225mm貼片晶振，SMD晶振，水晶振動子，貼片無源晶振，無源晶振，陶瓷晶振，無源SMD晶振，兩腳貼片晶振，SMD晶體諧振器，無鉛環保晶振，12MHZ無源晶振，輕薄型晶振，影音系統晶振，車載專用晶振，平板電腦晶振，網絡設備晶振，小型設備晶振，低損耗晶振，低功耗晶振，高精度晶振，高可靠性晶振，具有高精度低功耗的特點。
SMD晶振產品非常適合用于小型設備，平板電腦，網絡設備，影音系統，車載應用等領域。DSX320G車載晶振,KDS高精度晶振,1ZCM12000BC0A.

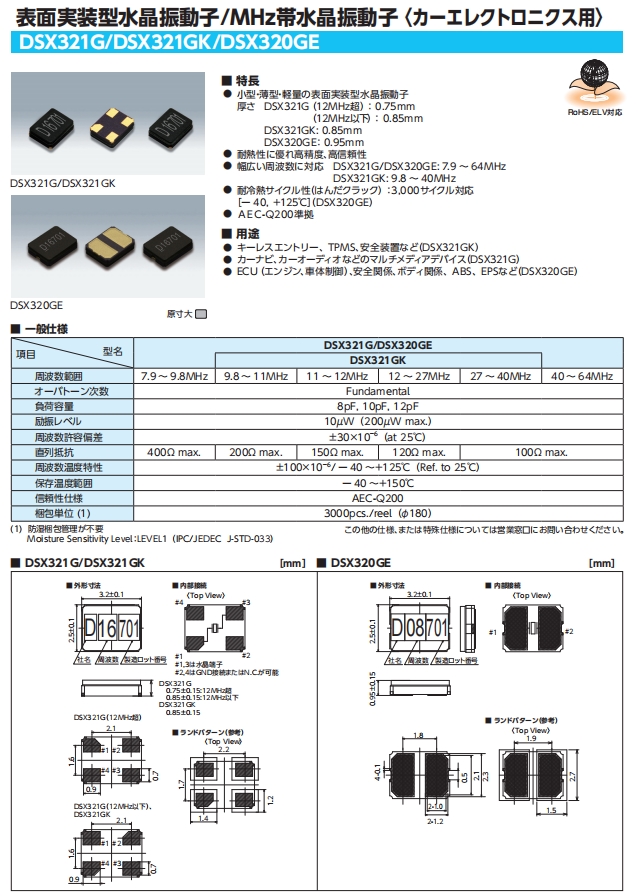

DSX320G車載晶振,KDS高精度晶振,1ZCM12000BC0A 參數表

型號名稱	DSX320G
頻率范圍	7.9~9.8MHz	9.8~11MHz	12MHz	12~27MHz	27~64MHz
泛音階	功能
負載容量	8pF，10pF，12pF
激勵電平	10μW(200μW max.)
頻率允許偏差	±30×10^-6( at 25℃)
串聯電阻	400ω最大。	200ω最大。	150ω最大。	120ω最大。	100ω最大。
頻率溫度特性	±100×10^-6/-40 + 125℃( ref.to25℃)
保存溫度范圍	40~+150℃
可靠性規格	AEC-Q200
包裝單位(1)	3000pcs./reel(φ180 )

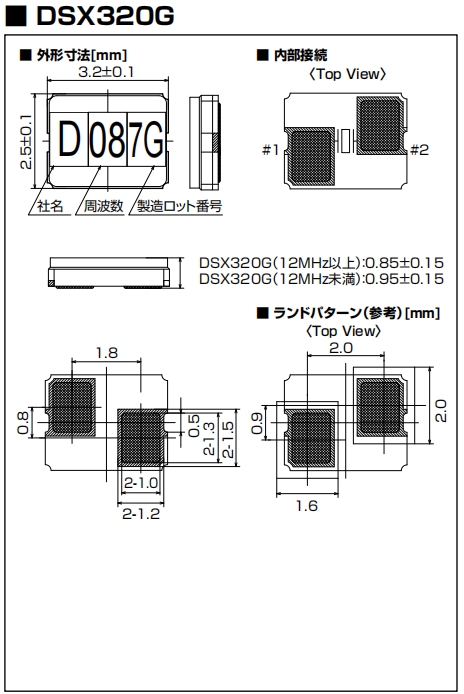

DSX320G車載晶振,KDS高精度晶振,1ZCM12000BC0A 尺寸圖

DSX320G車載晶振,KDS高精度晶振,1ZCM12000BC0A
陶瓷晶振產品特性：
小型薄型輕量表面安裝型石英振子厚度0.95mm
耐熱性優異，高精度、高可靠性
支持從7.9MHz的低頻到64MHz的廣泛頻率
耐冷熱循環性(焊錫破裂) :支持3,000個循環[-40，+125°C]
符合AEC-Q200標準

品牌	原廠代碼	型號	尺寸	頻率	負載/電壓	精度	溫度
KDS晶振	1XTV36864HBA	DSA321SCM	3225	36.864M
KDS晶振	1CG12288EE1C	DSX630G	6035	12.288M
KDS晶振	1ZNA16000AB0P	DSX221G	2520	16.000M	9PF	10ppm
KDS晶振	1ZNA32000BB0B	DSX221G	2520	32.000M	12PF	15ppm
KDS晶振	ZC13727	DSX221SH	2520	24.000M	10PF	30ppm
KDS晶振	1ZN326000AB0A	DSX221SH	2520	26.000M	7PF	10PPM
KDS晶振	1C208000BC0R	DSX321G	3225	8.000M	12PF	20PPM
KDS晶振	7AD00800A1C	DSX321G	3225	8.000M	12PF	20PPM
KDS晶振	1C208000CE0H	DSX321G	3225	8.000M	10PF	20PPM
KDS晶振	1C208000EE0BL	DSX321G	3225	8.000M	12PF	20PPM	40~125度
KDS晶振	1ZCM080000EE0A汽車	DSX320G	3225	8.000M	8PF	20PPM	40~85度
KDS晶振	1C208000EZ0G汽車	DSX321G	3225	8.000M	8PF	30PPM	40~85度
KDS晶振	1N210000EE0X	DSX321G	3225	10.000M	10PF
KDS晶振	7AD01200A1R	DSX321G	3225	12.000M	8PF	20ppm
KDS晶振	1N212000BC0AK	DSX321G	3225	12.000M	10PF	20ppm
KDS晶振	1C213080CC0A	DSX321G	3225	13.080M	8PF
KDS晶振	1C232000ABOV	DSX321G	3225	32.000M	6PF	10PPM
KDS晶振	1N254000BB0M	DSX321G	3225	54.000M	19PF	15PPM
KDS晶振	1ZCM12000BC0A	DSX320G	3225	12.000M	8PF
KDS晶振	1C216000EE0AW	DSX321G	3225	16.000M	8PF	50PPM
KDS晶振	1N216000EE0BE	DSX321G	3225	16.000M	8PF	50PPM
KDS晶振	1C216000BF0B	DSX321G	3225	16.000M
KDS晶振	1C319200AA0A	DSX321G	3225	19.200M	8PF	10PPM
KDS晶振	1C220000AA0K	DSX321G	3225	20.000M
KDS晶振	1C224000BE0K	DSX321G	3225	24.000M
KDS晶振	1N225000BC0CT	DSX321G	3225	25.000M	7.5PF
KDS晶振	1N226000AA0G	DSX321G	3225	26.000M	12.5PF	10ppm
KDS晶振	1N226000AA0E	DSX321G	3225	26.000M	8.1PF	10PPM
KDS晶振	1C214745CE0E	DSX321G	3225	14.7456M
KDS晶振	1C224576AC0A	DSX321G	3225	24.576M
KDS晶振	1N226000AB0M	DSX321G	3225	26.000M	8PF	8PPM
KDS晶振	1N226000AB0J	DSX321G	3225	26.000M	11PF	10PPM
KDS晶振	1C226000BE0D	DSX321G	3225	26.000M
KDS晶振	1N227000AB0N	DSX321G	3225	27.000M
KDS晶振	1C233333BC0G	DSX321G	3225	33.333333M
KDS晶振	1N340000LA0B	DSX321G	3225	40.000M
KDS晶振	1C340000LA0A	DSX321G	3225	40.000M	8PF
KDS晶振	1C262400BK0A	DSX321G	3225	62.4M
KDS晶振	1N227000EE0L	DSX321G	3225	27.000M	9PF	50ppm
KDS晶振	1BASAMPLE	DSX321G	3225	27.000M	9PF	50ppm
KDS晶振	1C227000BBAH	DSX321G	3225	27.000M	11PF	12ppm
KDS晶振	1N227000BB0AK	DSX321G	3225mm貼片晶振	27.000M	11PF	12PPM
KDS晶振	1C228322EE0D	DSX321G	3225	28.322M	10PF	50PPM
KDS晶振	1N230000AB0C	DSX321G	3225	30.000M	10PF	30PPM
KDS晶振	1C338400AA0B	DSX321G	3225	38.400M	10PF	10PPM
KDS晶振	1C241600CDAA	DSX321G	3225	41.6M	10PF	30PPM
KDS晶振	1C254000CC0C	DSX321G	3225	54.000M	10PF	30PPM
KDS晶振	1N232000AA0N	DSX321G	3225	32.000M	12PF
KDS晶振	1N240000AB0J	DSX321G	3225	40.000M	15PF	15PPM	40~125度
KDS晶振	1C240000AB0G	DSX321G	3225	40.000M	10PF	10PPM
KDS晶振	X4S013000DA1H-W	HSX421S	4025	13.000M	10PF	20ppm
KDS晶振	X1H013000B81H	HSX531S	5032	13.000M	8PF	10ppm
KDS晶振	1C736864CC1A	DSX530GA	5032	36.864M	8PF	25PPM
KDS晶振	1HX12288CD1A	DSX840GA	8045	12.288M	20PF	30PPM
KDS晶振	1CX40000EE1O	DSX840GA	8045	40.000M	18PF	50ppm
KDS晶振	1CW04000KK3C	DSX151GAL	11.8*5.5	4.000M
KDS晶振	1CW08192EK3A	DSX151GAL	11.8*5.5	8.192M	15PF	20ppm
KDS晶振	CW08000EK3B	DSX151GAL	11.8*5.5	8.000M
KDS晶振	1AJ039286A	SMD-49		3.928231M
KDS晶振	1AJ040003DJ	SMD-49		4.000M
KDS晶振	1AJ043324C	SMD-49	11*4.6	4.332M	12PF	20PPM
KDS晶振	1AJ073726AV	SMD-49		7.3728M
KDS晶振	1AJ099976A	SMD-49		9.9975M
KDS晶振	1AR11059CEB	SMD-49		11.0592M	16PF	30PPM
KDS晶振	1AJ160006BL	SMD-49		16.000M
KDS晶振	1AJ16000EEL	SMD-49		16.000M
KDS晶振	1AJ160003D	SMD-49		16.000M		30PPM
KDS晶振	1AJ17408AAGA	SMD-49	11*4.6	17.408M	16PF	50PPM
KDS晶振	1AJ240006AEA	SMD-49	11*4.6	24.000M	16PF	50PPM
