- 編號：74395155
- 頻率：24MHZ
- 尺寸：2.0*1.6mm

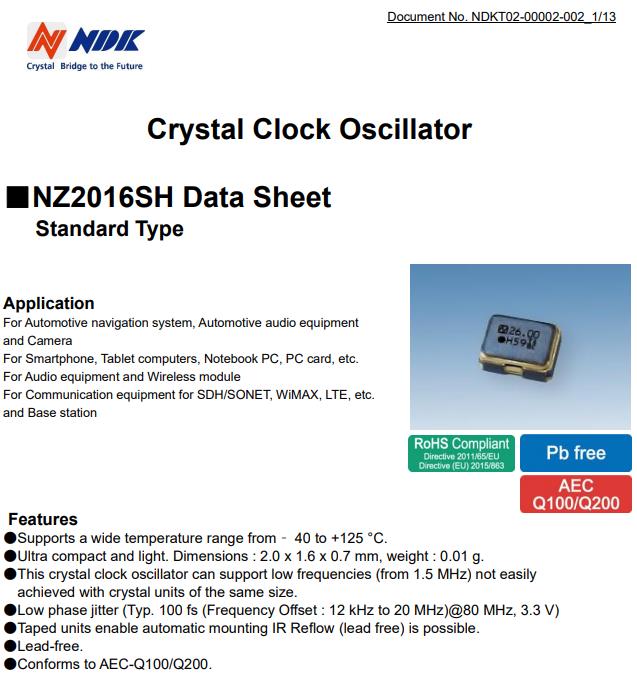

NDK汽車電子專用晶振|NZ2016SH-24.000MHZNSC5022C|2016|1.8V
NZ2016SH-24.000MHZNSC5022C|24MHz|-40~125℃|1.8V|2016，是一款金屬面貼片型的有源晶振，NDK車規晶振，汽車電子專用晶振，日本進口晶振，石英晶體振蕩器，OSC振蕩器，SMD振蕩器，寬溫晶振，產品特點：支持-40至+125C...
NDK汽車電子專用晶振|NZ2016SH-24.000MHZNSC5022C|2016|1.8V，是一款金屬面貼片型的有源晶振，NDK車規晶振，汽車電子專用晶振，日本進口晶振，石英晶體振蕩器，OSC振蕩器，SMD振蕩器，寬溫晶振，產品特點：支持- 40至+125°C的寬溫度范圍。小巧輕便。尺寸2.0x 1.6x 0.7mm，這種晶體時鐘振蕩器可以支持低頻率(從1.5MHz)，用相同尺寸的晶體單元實現。低相位抖動(類型:100fs(頻率偏移:12khz至20mhz)@ 80mhz, 3.3 V)，膠帶裝置可自動安裝紅外回流管(無鉛)。應用領域：汽車導航系統、汽車音響設備和攝像機 智能手機、平板電腦、筆記本電腦、PC卡等。 音頻設備和無線模塊，基站等領域。
NDK汽車電子專用晶振|NZ2016SH-24.000MHZNSC5022C|2016|1.8V 參數表
| NZ2016SH | Electrical Spec. | |||||
| Parameters | SYM | min | typ | max | Units | Notes |
| Nominal Frequency | fnom | 1.5 | 80 | MHz | ||
| Supply Voltage | VCC | +1.8 to +3.3 | V | |||
|
Current Consumption (Operating) |
ICC | See Table.2 | mA | at 25℃ | ||
|
Current Consumption (Stand-by) |
IST | 20 | mA | at 25℃ | ||
| Output Level | - | CMOS | ||||
| Load Capacitance | CL | 15 | pF | |||
|
Operating Temperature Range |
Topr | [-10 to +60] to [-40 to +125] | ℃ | Table.1 | ||
|
Overall Frequency Tolerance |
Df/fnom | ± 20 to ± 100 | ppm | Table.1 *1 | ||
| Output Voltage | VOL | 0.1 VCC | V | |||
| VOH | 0.9 VCC | V | ||||
|
Rise Time(tr), Fall Time(tf) |
tr/tf | 5 | ns |
+2.5 V to +3.3 V 0.1 VCC to 0.9 VCC |
||
| 6 | ns |
+1.8 V 0.1 VCC to 0.9 VCC |
||||
| Symmetry | SYM | 45 | 55 | % | at 1/2 VCC | |
| Start-up Time | tsu | 4 | ms | |||
| Output Wave Form | - | Square wave | ||||
| Stand-by Function | #1 PAD input | # 3 PAD output | ||||
|
H level (0.7 VCC to VCC) or open L level (0.3 VCC max) |
Operating | |||||
|
High impedance |
||||||
NDK汽車電子專用晶振|NZ2016SH-24.000MHZNSC5022C|2016|1.8V 尺寸圖
| Manufacturer Part Number | Manufacturer | Series | Frequency 頻率 | Voltage - Supply電壓 |
| NZ2520SB-25.600MHZ | NDK振蕩器 | NZ2520SB | 25.6MHz | 3V |
| NZ2520SB-38.900MHZ | NDK振蕩器 | NZ2520SB | 38.9MHz | 3V |
| NZ2520SB-40.000000MHZ | NDK振蕩器 | NZ2520SB | 40MHz | 3V |
| NZ2520SB-41.360MHZ | NDK振蕩器 | NZ2520SB | 41.36MHz | 3V |
| NZ2520SB-44.000000MHZ | NDK振蕩器 | NZ2520SB | 44MHz | 3V |
| NT3225SA-26.000000MHZ-G5 | NDK振蕩器 | NT3225SA | 26MHz | 2.4V |
| NT3225SA-26.000000MHZ-G7 | NDK振蕩器 | NT3225SA | 26MHz | 2.7V |
| NT3225SA-26.000000MHZ-G8 | NDK振蕩器 | NT3225SA | 26MHz | 2.75V |
| NT3225SA-19.200000MHZ-T3 | NDK振蕩器 | NT3225SA | 19.2MHz | 2.8V |
| NZ2520SA-2.750000MHZ | NDK振蕩器 | NZ2520SA | 2.75MHz | 3V |
| NZ2520SA-5.000000MHZ | NDK振蕩器 | NZ2520SA | 5MHz | 3V |
| NZ2520SA-7.600000MHZ | 日本NDK晶體 | NZ2520SA | 7.6MHz | 3V |
| NZ2520SA-10.000000MHZ | NDK振蕩器 | NZ2520SA | 10MHz | 3V |
| NZ2520SA-20.000000MHZ | NDK振蕩器 | NZ2520SA | 20MHz | 3V |
| NZ2520SA-22.000000MHZ | NDK振蕩器 | NZ2520SA | 22MHz | 3V |
| NZ2520SA-40.000000MHZ | NDK振蕩器 | NZ2520SA | 40MHz | 3V |
| NZ2520SA-44.000000MHZ | NDK振蕩器 | NZ2520SA | 44MHz | 3V |
| NT3225SA-13.000000MHZ | NDK America, Inc. | NT3225SA | 13MHz | 3V |
| NT3225SA-19.680000MHZ | NDK America, Inc. | NT3225SA | 19.68MHz | 3V |
| NT3225SA-26.000000MHZ | NDK America, Inc. | NT3225SA | 26MHz | 3V |
| NT2016SA-16.368000 MHZ-NTG1 | NDK America, Inc. | NT2016SA | 16.368MHz | 2.5V |
| NT3225SA-19.200000MHZ | NDK America, Inc. | NT3225SA | 19.2MHz | 2.8V |
| NT3225SA-19.2M-DJA3002B | NDK America, Inc. | NT3225SA | 19.2MHz | 2.8V |
| NT2520SA-26.000000MHZ-A1 | NDK America, Inc. | NT2520SA | 26MHz | 2.4V |
| NZ2520SB-32.768KHZ-NSA3535C | NDK America, Inc. | NZ2520S | 32.768kHz | 2.5V |
| NZ2520SB-2.750000MHZ | NDK America, Inc. | NZ2520SB | 2.75MHz | 3V |
| NZ2520SB-7.600000MHZ | NDK America, Inc. | NZ2520SB | 7.6MHz | 3V |
| NZ2520SB-5.000000MHZ | NDK America, Inc. | NZ2520SB | 5MHz | 3V |
| NZ2520SB-10.000000MHZ | NDK振蕩器 | NZ2520SB | 10MHz | 3V |
| NZ2520SB-19.200MHZ | NDK振蕩器 | NZ2520SB | 19.2MHz | 3V |
