- 編號：26353666
- 頻率：32.768KHZ
- 尺寸：2.0*1.2mm

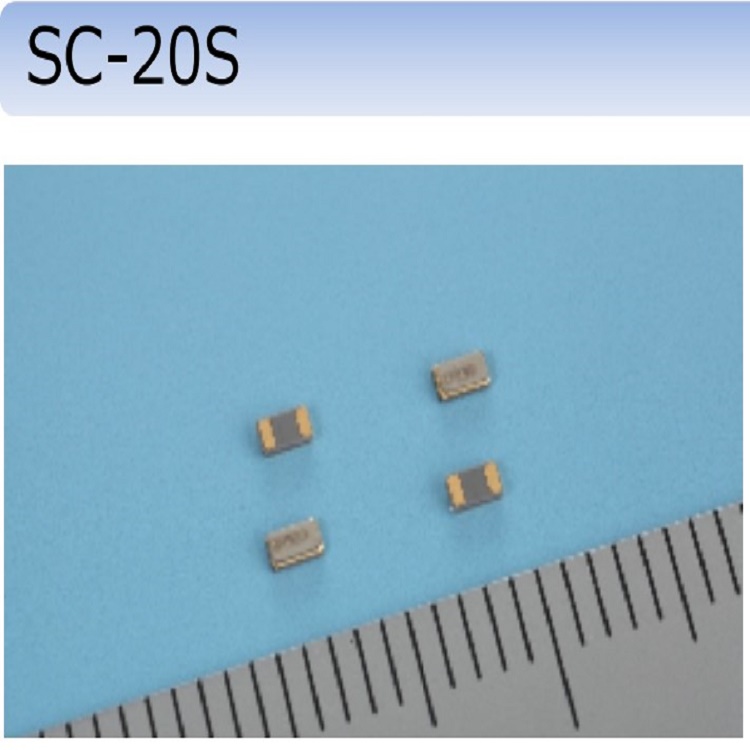

Q-SC20S03210C5AAAF|SC-20S|32.768KHZ|羅拉模塊|2012mm
Q-SC20S03210C5AAAF|SC-20S|32.768KHZ|羅拉模塊|2012mm,尺寸為2012mm,頻率為32.768KHZ，頻率穩定度為10ppm，日本進口晶振，精工晶振，無源諧振器，石英晶體，音叉晶體，音叉諧振器，貼片無源晶振，超小型晶振，2012mm...
TXC,NDK,希華.jpg)
Q-SC20S03210C5AAAF|SC-20S|32.768KHZ|羅拉模塊|2012mm,尺寸為2012mm,頻率為32.768KHZ，頻率穩定度為10ppm，日本進口晶振，精工晶振，無源諧振器，石英晶體，音叉晶體，音叉諧振器，貼片無源晶振，超小型晶振，2012mm晶振，32.768KHZ晶振，羅拉模塊晶振，通信模塊晶振，手機專用晶振，可穿戴設備晶振，Q-SC16S0320570CADF晶振，Q-SC20S03205C5AAAF無源晶振。Q-SC20S03210C5AAAF|SC-20S|32.768KHZ|羅拉模塊|2012mm.SMD晶振產品主要應用范圍：手機，可穿戴設備，各種模塊，各種微信號時鐘等。
格發TXC,NDK,希華.jpg)

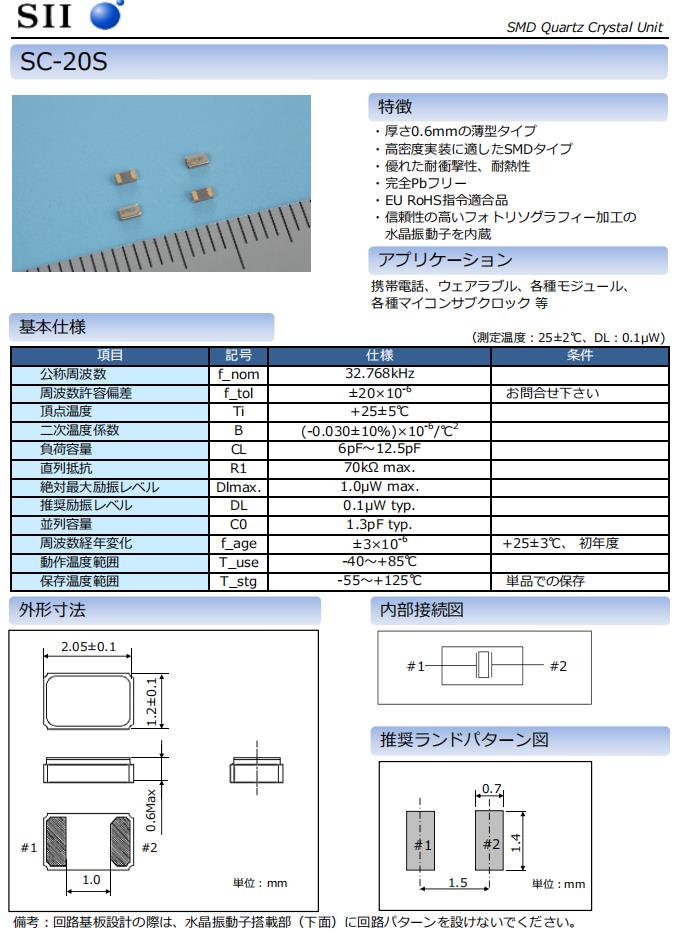

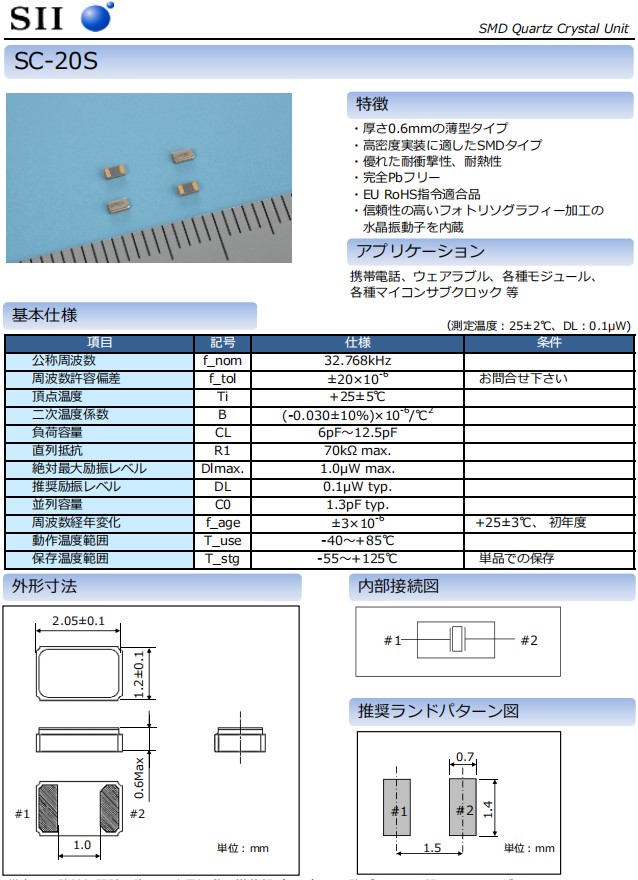

Q-SC20S03210C5AAAF|SC-20S|32.768KHZ|羅拉模塊|2012mm 參數表
| 項目 |
 符合 |
規格 | 條件 | ||
| 標稱頻率 | _nom | 32 .768kHz | |||
| 頻率容許偏差 | f_tol | ±20×10-6 | 請咨詢我們 | ||
| 頂點溫度 | Ti | +25±5℃ | |||
| 二次溫度保數 | B | (-0 .030±10%)×10-6/℃2 | |||
| 負載容量 | CL | 6pF~12 .5pF | |||
| 串聯電阻 | R1 | 70kΩ max . | |||
| 絕對最大激勵水平 | Dlmax . | 1 .0μW max . | |||
| 推薦激勵等級 | DL | 0 . 1μW typ . | |||
| 并行電容 | C0 | 1 .3pF typ . | |||
| 頻率經年變化 | f_age | ±3×10-6 | +25±3℃、 初年度 | ||
| 工作溫度范圍 | T_use | -40~+85℃ | |||
| 保存溫度范圍 | T_stg | -55~+125℃ | 單品保存 | ||
Q-SC20S03210C5AAAF晶振 特點
厚度只有0.6mm的超薄型
高密度危害裝k適合U型SMD型
·卓越的耐沖擊性、耐熱性
·完全無Pb
·符合歐盟RoHS法令的產品
·可靠性高的光刻加工
內置晶體振蕩器
更多相關日本精工晶振型號
| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 | 頻率穩定度 |
| Q-SPT7P032762070FF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SPT7P032761070FF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SPT7P032760570FF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC32S03220C5AAE | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC32S03210C5AFE | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC32S03205C5ADE | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC32S0320570CADF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC32S0321070CAAF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC32S0322070AAAF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC32S03220C5AAAF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC32S03210C5AAFF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC32S03205C5AADF | Seiko精工晶振 | SC-32S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC20S0322070CAAF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC20S0321070CAFF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC20S0320570CADF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| VT200F-6PF20PPM | Seiko精工晶振 | VT-200-F | kHz Crystal (Tuning Fork) | 32.768kHz | - |
| VT200F-12.5PF20PPM | Seiko精工晶振 | VT-200-F | kHz Crystal (Tuning Fork) | 32.768kHz | - |
| Q-SPT7P0327620C5GF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SPT7P0327610C5GF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SPT7P0327605C5GF | Seiko精工晶振 | SSP-T7 | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC16S03220C5AAAF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC16S03210C5AAAF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC16S03205C5AAAF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC16S0322070CAAF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC16S0321070CAFF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC16S0320570CADF | Seiko精工晶振 | SC-16S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SC20S03220C5AAAF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
| Q-SC20S03210C5AAAF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±10ppm |
| Q-SC20S03205C5AAAF | Seiko精工晶振 | SC-20S | kHz Crystal (Tuning Fork) | 32.768kHz | ±5ppm |
| Q-SPT2S0327620C5DJ | Seiko精工晶振 | SSP-T2A-F | kHz Crystal (Tuning Fork) | 32.768kHz | ±20ppm |
