石英晶體振蕩器
- 編號：90083769
- 頻率：20MHz
- 尺寸：3.2*2.5MHz

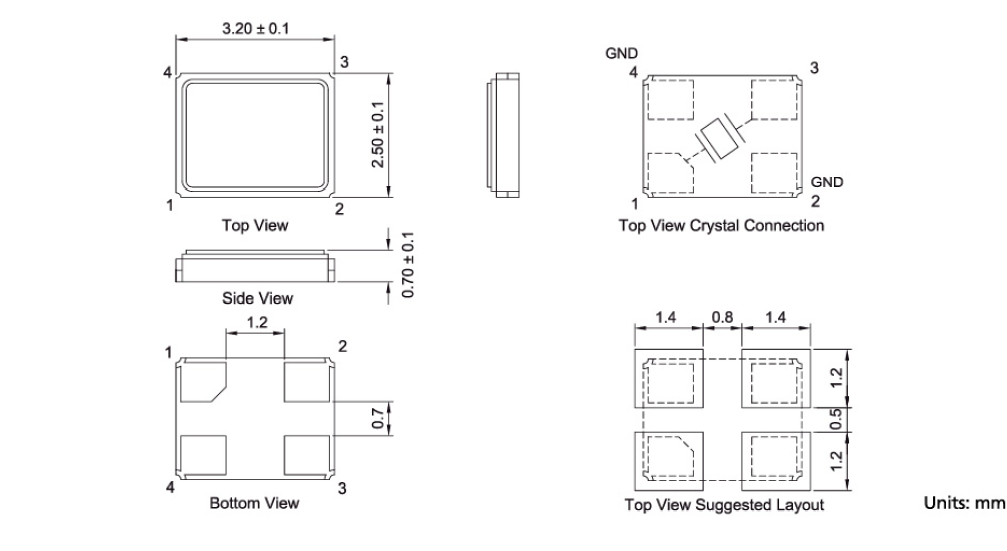

7M-20.000MAAJ-T,3225mm,7M
編碼為7M-20.000MAAJ-T型號7M的無源晶振,尺寸為3225mm的小型晶振具有良好的耐環境性使她能在-20°C至70°C,康華爾所提供石英晶體諧振器,SPXO石英晶體振蕩器具有高質量,低功耗,精度偏差小等特點,
.jpg)
7M-20.000MAAJ-T,3225mm,7M,無源石英晶振,石英諧振器,四腳貼片晶振,TXC晶振中編碼為7M-20.000MAAJ-T型號7M的無源晶振,尺寸為3225mm,頻率為20MHz,高精度使她頻率偏差僅有±30ppm,康華爾早早便成為了TXC晶振上海的代理商,TXC晶振成立幾十年以來用質量來打動廣大用戶,被許多客戶堅定選擇,廣泛運用到智能手機晶振,藍牙晶振,計時晶振,兒童遙控汽車晶振,電子稱晶振等行業
7M-20.000MAAJ-T,3225mm,7M
| 原廠編碼 | 7M-20.000MAAJ-T |
| 頻率 | 20.0MHz |
| 廠家 | TXC晶振 |
| 型號 | 7M |
| 頻率偏差 | ±30ppm |
| 負載電容 | 18pF |
| 工作溫度 | -20°C ~ 70°C |
| 電阻 | 60Ohm |
7M-20.000MAAJ-T,3225mm,7M
.png)
.jpg)
| 7A-27.120MAAE-T | TXC晶振 | 7A | 27.12MHz | ±30ppm | ±30ppm | 12pF |
| 7A-24.000MAAJ-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 18pF |
| 7A-16.000MAAJ-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 18pF |
| 7A-8.000MAAJ-T | TXC晶振 | 7A | 8MHz | ±30ppm | ±30ppm | 18pF |
| 7A-12.000MAAJ-T | TXC晶振 | 7A | 12MHz | ±30ppm | ±30ppm | 18pF |
| 7A-25.000MAAJ-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 18pF |
| 7A-27.120MAAJ-T | TXC晶振 | 7A | 27.12MHz | ±30ppm | ±30ppm | 18pF |
| 7A-24.000MAHE-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 12pF |
| 7A-10.000MAAJ-T | TXC晶振 | 7A | 10MHz | ±30ppm | ±30ppm | 18pF |
| 7A-25.000MAAE-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 12pF |
| 7A-10.000MAAE-T | TXC晶振 | 7A | 10MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.7456MAAJ-T | TXC晶振 | 7A | 14.7456MHz | ±30ppm | ±30ppm | 18pF |
| 7A-18.432MAAJ-T | TXC晶振 | 7A | 18.432MHz | ±30ppm | ±30ppm | 18pF |
| 7A-12.288MAAJ-T | TXC晶振 | 7A | 12.288MHz | ±30ppm | ±30ppm | 18pF |
| 7A-20.000MAAJ-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 18pF |
| 7A-28.63636MAAJ-T | TXC晶振 | 7A | 28.63636MHz | ±30ppm | ±30ppm | 18pF |
| 7A-16.000MAHE-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 12pF |
| 7A-48.000MAAJ-T | TXC晶振 | 7A | 48MHz | ±30ppm | ±30ppm | 18pF |
| 7A-27.000MAAJ-T | TXC晶振 | 7A | 27MHz | ±30ppm | ±30ppm | 18pF |
| 7A-26.000MAAJ-T | TXC晶振 | 7A | 26MHz | ±30ppm | ±30ppm | 18pF |
| 7A-20.000MAHE-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 12pF |
| 7A-25.000MAHE-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.7456MAAE-T | TXC晶振 | 7A | 14.7456MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.31818MAAE-T | TXC晶振 | 7A | 14.31818MHz | ±30ppm | ±30ppm | 12pF |
| 7A-24.000MAAE-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 12pF |
| 7A-16.000MAAE-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 12pF |
| 7A-20.000MAAE-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 12pF |
| 7A-12.000MAAE-T | TXC晶振 | 7A | 12MHz | ±30ppm | ±30ppm | 12pF |
| 7A-22.1184MAAJ-T | TXC晶振 | 7A | 22.1184MHz | ±30ppm | ±30ppm | 18pF |
| 7A-29.4912MAAJ-T | TXC晶振 | 7A | 29.4912MHz | ±30ppm | ±30ppm | 18pF |
| 7A-30.000MAAJ-T | TXC晶振 | 7A | 30MHz | ±30ppm | ±30ppm | 18pF |
| 7A-14.31818MAAJ-T | TXC晶振 | 7A | 14.31818MHz | ±30ppm | ±30ppm | 18pF |
| 7A-49.152MAAJ-T | TXC晶振 | 7A | 49.152MHz | ±30ppm | ±30ppm | 18pF |
| 7A-24.576MAAJ-T | TXC晶振 | 7A | 24.576MHz | ±30ppm | ±30ppm | 18pF |
| 7A-18.432MBBK-T | TXC晶振 | 7A | 18.432MHz | ±50ppm | ±50ppm | 20pF |
| 7A-24.576MBBK-T | TXC晶振 | 7A | 24.576MHz | ±50ppm | ±50ppm | 20pF |
| 7A-28.63636MAHJ-T | TXC晶振 | 7A | 28.63636MHz | ±30ppm | ±30ppm | 18pF |
| 7A-33.3333MAAE-T | TXC晶振 | 7A | 33.3333MHz | ±30ppm | ±30ppm | 12pF |
| 7A-13.000MAHJ-T | TXC晶振 | 7A | 13MHz | ±30ppm | ±30ppm | 18pF |
| 7A-40.000MAHE-T | TXC晶振 | 7A | 40MHz | ±30ppm | ±30ppm | 12pF |
| 7A-18.432MAAE-T | TXC晶振 | 7A | 18.432MHz | ±30ppm | ±30ppm | 12pF |
| 7A-11.0592MAAE-T | TXC晶振 | 7A | 11.0592MHz | ±30ppm | ±30ppm | 12pF |
| 7A-8.000MAHJ-T | TXC晶振 | 7A | 8MHz | ±30ppm | ±30ppm | 18pF |
| 7A-22.1184MAAE-T | TXC晶振 | 7A | 22.1184MHz | ±30ppm | ±30ppm | 12pF |
| 7A-13.560MAAE-T | TXC晶振 | 7A | 13.56MHz | ±30ppm | ±30ppm | 12pF |
