- 編號：4367373
- 頻率：19.2MHZ
- 尺寸：3.2*2.5mm

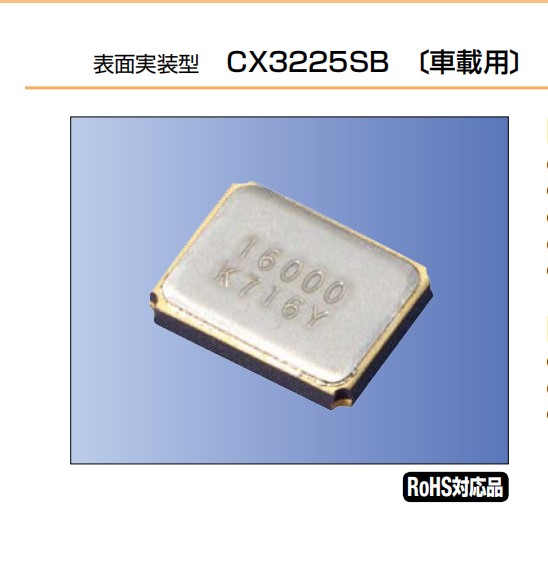

SMD,CX3225SB19200H0FLJCC,3225mm,19.2MHZ,-30~85℃
SMD,CX3225SB19200H0FLJCC,3225mm,19.2MHZ,-30~85℃,尺寸為3225mm,頻率為19.2MHZ，工作溫度-30~85℃,Kyocera晶振，日本京瓷晶振，進口晶振，無源諧振器，石英水晶振子，石英貼片晶振，SMD晶振，石英晶體諧振器，音叉晶...
.JPG)
SMD,CX3225SB19200H0FLJCC,3225mm,19.2MHZ,-30~85℃,尺寸為3225mm,頻率為19.2MHZ，工作溫度-30~85℃,Kyocera晶振，日本京瓷晶振，進口晶振，無源諧振器，石英水晶振子，石英貼片晶振，SMD晶振，石英晶體諧振器，音叉晶體，無源貼片晶振，低損耗晶振，高性能晶振，小體積晶振，輕薄型晶體，汽車電子專用晶振，車載攝像機晶振，高速車載網絡晶振，汽車音響晶振，CX3225SB12288D0FLJCC諧振器，CX3225SB40000D0FLJCC無源晶振。石英晶振主要應用范圍：汽車電子，高速車載網絡，車載攝像機，車載控制器，汽車音響等領域。SMD,CX3225SB19200H0FLJCC,3225mm,19.2MHZ,-30~85℃

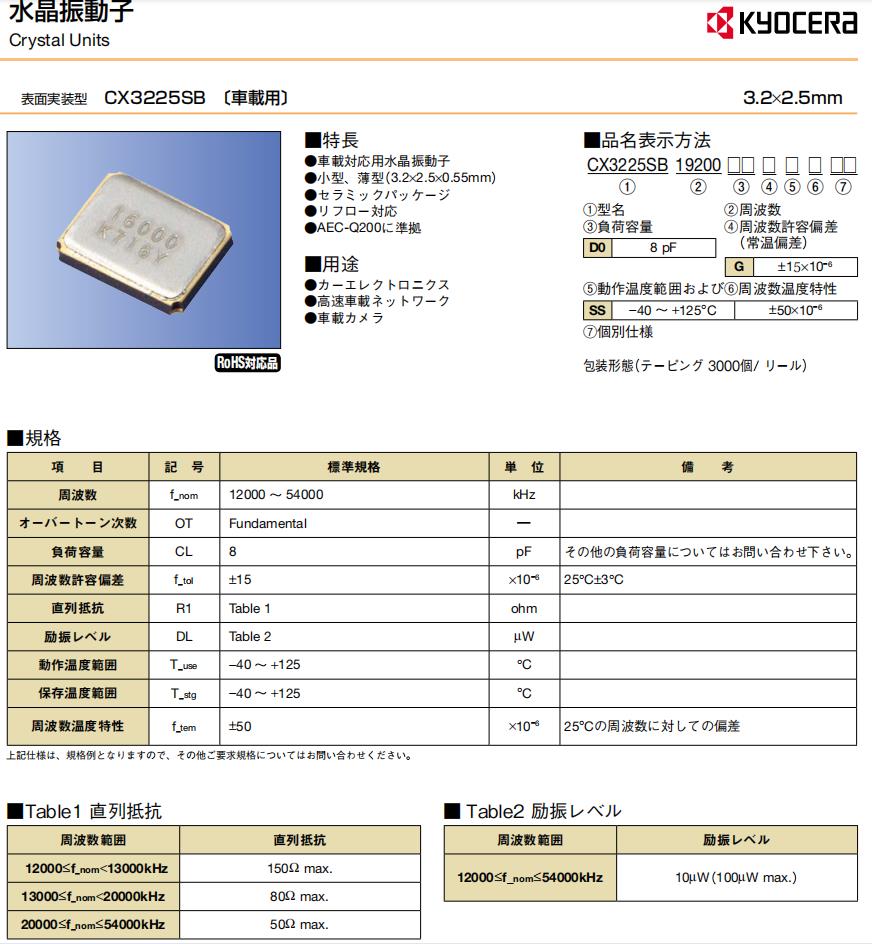

SMD,CX3225SB19200H0FLJCC,3225mm,19.2MHZ,-30~85℃ 參數表
CX3225SB19200H0FLJCC晶振 特點
| 項 目 | 記 號 | 標準規格 | 単 位 | 備 考 | |||||||||
| 周波數 | f_nom | 12000 ~ 54000 | kHz | ||||||||||
| 過音階 | OT | Fundamental | ― | ||||||||||
| 負荷容量 | CL | 8 | pF | 關于其他的負荷容量請咨詢。 | |||||||||
| 頻率容許偏差 | f_tol | ± 15 | × 10−6 | 25°C±3°C | |||||||||
| 直列抵抗 | R1 | Table 1 | ohm | ||||||||||
| 激勵水平 | DL | Table 2 |
 W |
||||||||||
| 工作溫度范圍 | T_use | −40 ~ +125 | °C | ||||||||||
| 保存溫度范圍 | T_stg | −40 ~ +125 | °C | ||||||||||
| 頻率溫度特性 | f_tem | ±50 | × 10−6 | 相對于25°C頻率的偏差 | |||||||||
| 頻率范圍 | 直列抵抗 | 頻率范圍 | 激勵水平 | ||||||||||
| 12000≤f_nom<13000kHz | 150Ω max. | 12000≤f_nom≤54000kHz | 10μW ( 100μW max.) | ||||||||||
| 13000≤f_nom<20000kHz | 80Ω max. | ||||||||||||
| 20000≤f_nom≤54000kHz | 50Ω max. | ||||||||||||
CX3225SB19200H0FLJCC晶振 特點
●車載對應用晶體振蕩器

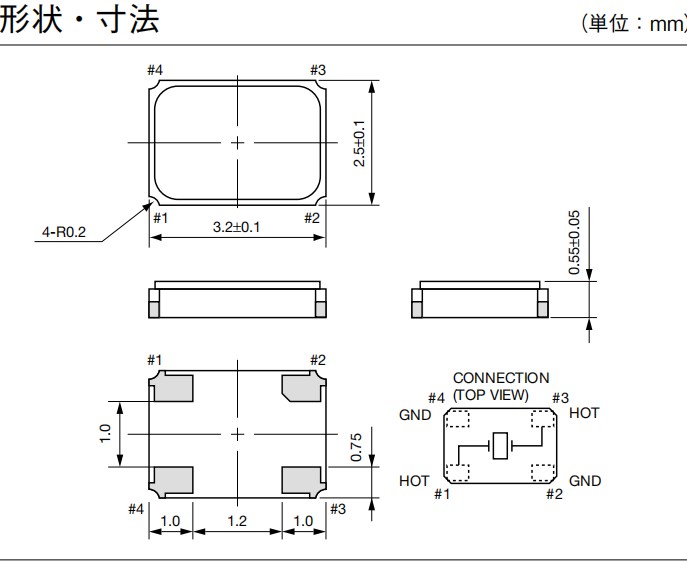

●體積小，超薄(3.2×2.5×0.55mm)
●陶瓷封裝
●應對回流
●兼容AEC-Q200
●優越性能
●優越性能
更多相關日本京瓷進口晶振型號
| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 |
| CX3225SB20000H0PSTC2 | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 20MHz |
| CX3225SB24000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 24MHz |
| CX3225SB54000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 54MHz |
| CX3225SB12288H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 12.288MHz |
| CX3225SB16000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 16MHz |
| CX3225SB19200H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 19.2MHz |
| CX3225SB48000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 48MHz |
| CX3225SB30000D0FLJCC | 京瓷晶振 | CX3225SB, Kyocera | MHz Crystal | 30MHz |
| CX3225SB19200D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 19.2MHz |
| CX3225SB24000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 24MHz |
| CX3225SB27000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 27MHz |
| CX3225SB12288D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 12.288MHz |
| CX3225SB24576D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 24.576MHz |
| CX3225SB48000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 48MHz |
| CX3225SB32000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 32MHz |
| CX3225SB24576H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 24.576MHz |
| CX3225SB40000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 40MHz |
| CX3225SB16000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 16MHz |
| CX3225SB26000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 26MHz |
| CX3225SB27000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 27MHz |
| CX3225SB25000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 25MHz |
| CX3225SB25000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 25MHz |
| CX3225SB20000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 20MHz |
| CX3225SB40000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 40MHz |
| CX3225SB40000D0FFFCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 40MHz |
| CX3225SB16000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 16MHz |
| CX3225SB19200D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 19.2MHz |
| CX3225SB24000D0FFJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 24MHz |
| CX3225SB20000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 20MHz |
| CX3225SB30000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 30MHz |
| CX3225SB38400D0FFFCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 38.4MHz |
| CX3225SB48000D0FFFCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 48MHz |
| CX3225SB27000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 27MHz |
| CX3225SB25000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 25MHz |
| CX3225SB48000D0FPJC2 | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 48MHz |
| CX3225SB16000E0FPZ25 | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 16MHz |
| CX3225SB16000D0FLJZZ | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 16MHz |
| CX3225SB54000D0FPJC1 | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 54MHz |
| CX3225SB12000D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 12MHz |
| CX3225SB48000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 48MHz |
| CX3225SB38400D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 38.4MHz |
| CX3225SB48000D0WPSC2 | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 48MHz |
| CX3225SB13560D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 13.56MHz |
| CX3225SB20000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 20MHz |
| CX3225SB32000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 32MHz |
| CX3225SB40000H0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 40MHz |
| CX3225SB12000D0FPNCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 12MHz |
| CX3225SB13560D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 13.56MHz |
| CX3225SB24000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 24MHz |
| CX3225SB32000D0FPLCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 32MHz |
| CX3225SB54000D0WPSC2 | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 54MHz |
| CX3225SB54000D0FPJC2 | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 54MHz |
| CX101F-040.000-H0445 | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 40MHz |
| CX3225SB12000D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 12MHz |
| CX3225SB12288D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 12.288MHz |
| CX3225SB13560D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 13.56MHz |
| CX3225SB16000D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 16MHz |
| CX3225SB19200D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 19.2MHz |
| CX3225SB20000D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 20MHz |
| CX3225SB24000D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 24MHz |
| CX3225SB24576D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 24.576MHz |
| CX3225SB25000D0GPSCC | Kyocera貼片無源晶振 | CX3225SB, Kyocera | MHz Crystal | 25MHz |
| CX3225SB26000D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 26MHz |
| CX3225SB27000D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 27MHz |
| CX3225SB30000D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 30MHz |
| CX3225SB32000D0GPSCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 32MHz |
| CX3225SB38400D0FLJCC | AVX Corp/Kyocera Corp | CX3225SB, Kyocera | MHz Crystal | 38.4MHz |
