AST3TQ-20.00MHZ-5-T2是一款超級適合點對點通信網絡的溫補晶振，Abracon的ATX-H11、ATX-H12和ATX-H13溫控振蕩器 (TCXO) 系列特別適用于具有Wi-Fi、GPS和藍牙服務的空間受限和功率受限的設備。這些器件可提供低至±2ppm的嚴密穩定性，適用于需要用于電信、導航和定位等功能的精密定時解決方案的應用。
查看下表，該TCXO系列中的系列之間的主要區別在于封裝尺寸。希望簡化設計的工程師可以將這些石英晶體振蕩器用作直接替代品，只需最少的設計工作，同時消除與偏置相關的頻率變化和時鐘源的偏置特定選擇。

AST3TQ-20.00MHZ-5-T2是一款超級適合點對點通信網絡的溫補晶振，運輸應用需要具有增強耐用性和性能的組件。Abracon晶振的ASEKDVAIG、ASAKDVAIG、ASDKDVAIG符合 AEC-Q200標準，并在完全認證的 IATF 16949生產線上制造，在降低成本的同時提供長期可靠性。我們的汽車級產品可在 -40°C 至 +125°C 的寬工作溫度范圍內提供，支持車載網絡或 GPS/導航等應用。AIG 連續電壓系列可以在各種電壓源中下降，使其更容易在需要不同電壓的設計中實施。這些器件具有針對低電流消耗而優化的寬工作溫度范圍，是汽車或工業應用的理想選擇。

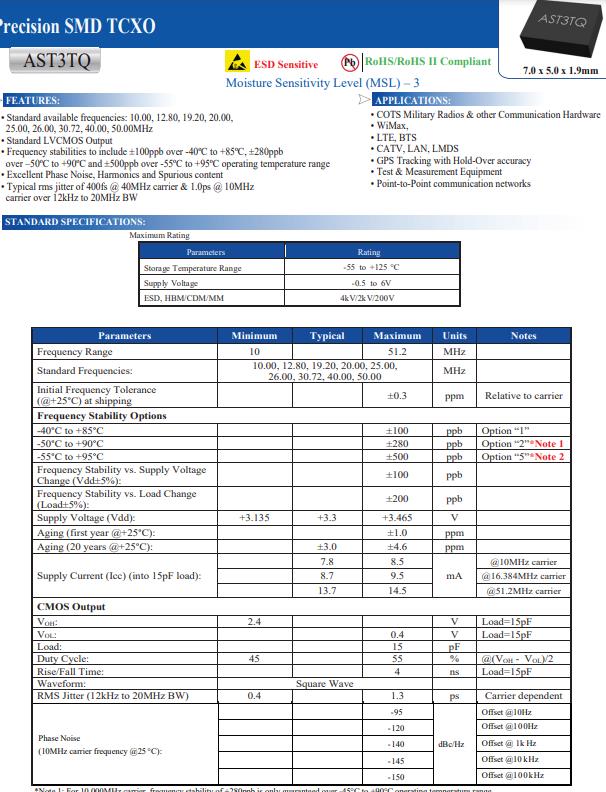

Abracon的TCXO溫補晶振AST3TQ-20.00MHZ-5-T2,標準可用頻率:10.00,12.80,19.20,20.00，25.00, 26.00, 30.72, 40.00, 50.00MHz，標準LVCMOS輸出，頻率穩定性包括±100ppb超過-40ºC到+85ºC，±280ppb，超過-50ºC至+90ºC和±500ppb超過-55ºC至+95ºC的工作溫度范圍，優秀的相位噪聲，諧波和雜散內容，典型的rms抖動400fs @ 40MHz載波& 1.0ps @ 10MHz載波超過12kHz至20MHz BW，應用：COTS軍用無線電和其他通信硬件，WiMax,LTE, BTS，catv, lan, LMDS，GPS跟蹤與保持精度，測試和測量設備，點對點通信網絡
Abracon’s ATX-H11, ATX-H12, and ATX-H13 temperature-controlled oscillator (TCXO) series are particularly suited for space-constrained and power-constrained devices with Wi-Fi, GPS, and Bluetooth services. These devices provide tight stability down to ±2ppm for applications that require a precision timing solution for functions such as telecommunications, navigation, and positioning.
Looking at the table below, the primary differences between the series within this TCXO family are the package sizes. Engineers looking to simplify their design can use these oscillators as drop-in replacements, requiring minimal design work while eliminating bias-dependent frequency variation and bias-specific selection of clocking sources.
Transportation applications require components with enhanced durability and performance. Abracon’s ASEKDVAIG, ASAKDVAIG, ASDKDVAIG are AEC-Q200 qualified and manufactured on fully certified IATF 16949 production lines, giving long term reliability while reducing its cost. Our automotive grade products are offered at a wide operating temperature range from -40°C to +125°C, supporting applications like in-vehicle networking or GPS/navigation. The AIG Continuous Voltage series can be dropped in various voltage supplies making it easier to implement in a design requiring different voltages. With a wide operating temperature range optimized for low current consumption, these devices are a favorable option for automotive or industrial use.
