With the advantages of low power consumption, small size, and high precision, they can be widely used in wearable devices and the Internet of Things field For applications requiring low power consumption, the choice of crystals is critical.  TAITIEN ‘s newly launched ultra-low current crystal oscillators feature current consumption that is less than 1.4μA and can run on an ultra-low voltage of 1.5V. The low current represents a significant decrease in current consumption of more than 90% from the 32.768kHz oscillators used in the past. This offers a significant improvement in the applications power consumption and battery life. These performance improvements are the result of an exclusive patented circuit design that only needs 8ms to start up. The rise and fall times of the output signal is a fast 10ns, satisfying the signal requirements of most end equipment.
The 32.768kHz clock signal provided by TAITIEN’s ultra-low current OZ-D and OY-D oscillators can fully support the Real Time Clock (RTC) function todays MCUs or ICs the require an external reference clock with low power. The OZ-D and OY-D oscillators use AT-cut crystal units with high Q values that were specifically designed for this product as the frequency reference source. The AT-cut crystals enable the oscillators to provide superior frequency stability then the traditional oscillators used in the past. For wide temperature such as -40°C to +85°C, the frequency error will not exceed ±25ppm. The crystals also results in low aging rate of less than ±3ppm, in the first year another way the they enable a long product life cycle.
Another advantage of these oscillators is their small size which is a must for todays’ IoT, wearable and other low-power applications. TAITIEN’s ultra-low current crystal oscillators are available in two sizes, The OY-D which is 2.5 x 2mm and the OZ-D which is only 2 x 1.6mm, providing a high degree of flexibility for system design and facilitating the miniaturization of products with a compact space structure.
TAITIEN’s ultra-low current OZ-D and OY-D oscillators feature low power consumption, small size, and high precision making them a great choice for Smart Phones, Fitness Watches, Sport Video Cams, Ultra-Small Notebook PC, Wireless Keypads, RTC Reference Clock, Battery Management Timekeeping, Pulse-per-second(pps) Timekeeping, Wearables, IoT, GPS, Home Automation and Smart Metering.
WiMAX無線局域網最喜愛的壓控溫補晶振TXEADCSANF-26.000000，對于需要低功耗的應用，晶體的選擇至關重要。TAITIEN新推出的超低電流有源晶振，電流消耗小于1.4μA，可在1.5V的超低電壓下運行。與過去使用的32.768kHz振蕩器相比，低電流表示電流消耗顯著降低了 90% 以上。這顯著改善了應用程序的功耗和電池壽命。這些性能改進是獨家專利電路設計的結果，只需 8ms 即可啟動。輸出信號的上升和下降時間快速10ns，滿足大多數終端設備的信號要求。

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Type 類型	Frequency 頻率	Voltage - Supply電壓
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32MHz	1.8V
TXKTPCSANF-32.000000	Taitien	TX	TCXO	32MHz	1.8V

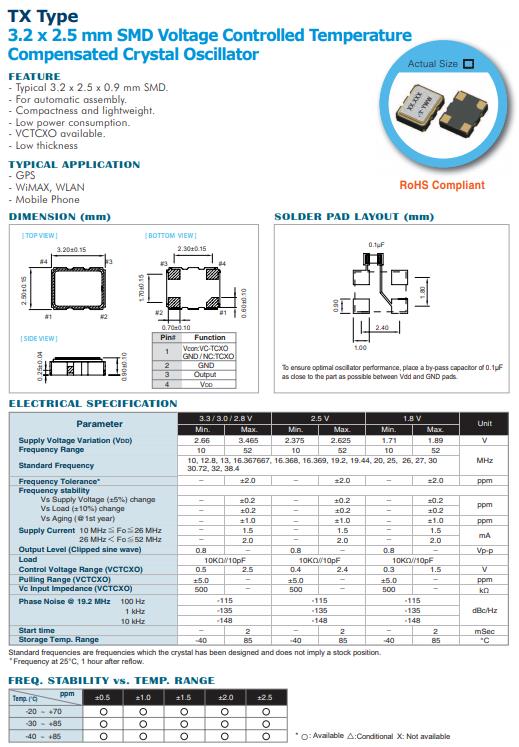

TXEADCSANF-26.000000	Taitien	TX	VCTCXO	26MHz	2.8 V ~ 3.3 V
TXEADCSANF-26.000000	Taitien	TX	VCTCXO	26MHz	2.8 V ~ 3.3 V
TXEADCSANF-26.000000	Taitien	TX	VCTCXO	26MHz	2.8 V ~ 3.3 V
TXEADDSANF-40.000000	Taitien	TX	VCTCXO	40MHz	2.8 V ~ 3.3 V
TXEADDSANF-40.000000	Taitien	TX	VCTCXO	40MHz	2.8 V ~ 3.3 V
TXEADDSANF-40.000000	Taitien	TX	VCTCXO壓控溫補晶振	40MHz	2.8 V ~ 3.3 V
TXETDDSANF-19.200000	Taitien	TX	TCXO	19.2MHz	2.8 V ~ 3.3 V
TXETDDSANF-19.200000	Taitien	TX	TCXO	19.2MHz	2.8 V ~ 3.3 V
TXETDDSANF-19.200000	Taitien	TX	TCXO	19.2MHz	2.8 V ~ 3.3 V
TXKADCSANF-19.200000	Taitien	TX	VCTCXO	19.2MHz	1.8V
TXKADCSANF-19.200000	Taitien	TX	VCTCXO	19.2MHz	1.8V
TXKADCSANF-19.200000	Taitien	TX	VCTCXO	19.2MHz	1.8V
TXKADCSANF-19.680000	Taitien	TX	VCTCXO	19.68MHz	1.8V
TXKADCSANF-19.680000	Taitien	TX	VCTCXO	19.68MHz	1.8V

WiMAX無線局域網最喜愛的壓控溫補晶振TXEADCSANF-26.000000，TAITIEN 的超低電流 OZ-D 和OY-D振蕩器提供的 32.768kHz 時鐘信號可以完全支持當今需要低功耗外部參考時鐘的MCU或 IC 的實時時鐘 (RTC) 功能。OZ-D 和 OY-D振蕩器使用專為本產品設計的高 Q 值 AT 切割晶體單元作為頻率參考源。AT-cut 石英晶體振蕩器能夠提供優于過去使用的傳統振蕩器的頻率穩定性。對于 -40°C 至 +85°C 等寬溫，頻率誤差不會超過 ±25ppm。晶體還導致低于 ±3ppm 的低老化率，在第一年它們以另一種方式實現了較長的產品生命周期。

這些振蕩器的另一個優勢是它們的小尺寸，這對于當今的物聯網、可穿戴和其他低功耗應用來說是必不可少的。TAITIEN泰藝晶振的超低電流晶振有兩種尺寸可供選擇，OY-D為2.5 x 2mm，OZ-D僅為2 x 1.6mm，為系統設計提供了高度的靈活性，有利于產品的小型化具有緊湊的空間結構。
TAITIEN 的超低電流OZ-D 和 OY-D振蕩器具有低功耗、小尺寸和高精度的特點，編碼TXEADCSANF-26.000000，是智能手機、健身手表、運動攝像機、超小型筆記本電腦、無線鍵盤、RTC 的理想選擇參考時鐘、電池管理計時、每秒脈沖 (pps) 計時、可穿戴設備、物聯網、GPS、家庭自動化和智能計量。
