- 編號：14365177
- 頻率：20.000MHz
- 尺寸：3.2x2.5mm
FC3BSBBGM20.0-T1,FOX晶體諧振器,FX325BS石英晶體,6G無線晶振
FC3BSBBGM20.0-T1,FOX晶體諧振器,FX325BS石英晶體,6G無線晶振,FC3BSECKP30.0-T1,汽車充電樁晶振，F(xiàn)OX?？怂咕д?，美國進口晶振，型號：FC3BSFormerFX325BS系列，編碼為：FC3BSBBGM20.0-T1，頻率為：20.000MHz，小體積...
TXC,NDK,希華.jpg)
FC3BSBBGM20.0-T1,FOX晶體諧振器,FX325BS石英晶體,6G無線晶振,FC3BSECKP30.0-T1,汽車充電樁晶振，FOX?？怂咕д?，美國進口晶振，型號：FC3BS Former FX325BS系列，編碼為：FC3BSBBGM20.0-T1，頻率為：20.000MHz，小體積晶振尺寸：3.2x2.5mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，工作溫度范圍：-40℃至+85℃。具有超小型，輕薄型，耐熱及耐環境特點，被廣泛用于：移動通訊設備，平板電腦，智能手機，無線網絡，藍牙模塊，車載控制器，汽車充電樁晶振，醫療設備，安防設備，數碼電子，物聯網等應用。
格發TXC,NDK,希華.jpg)

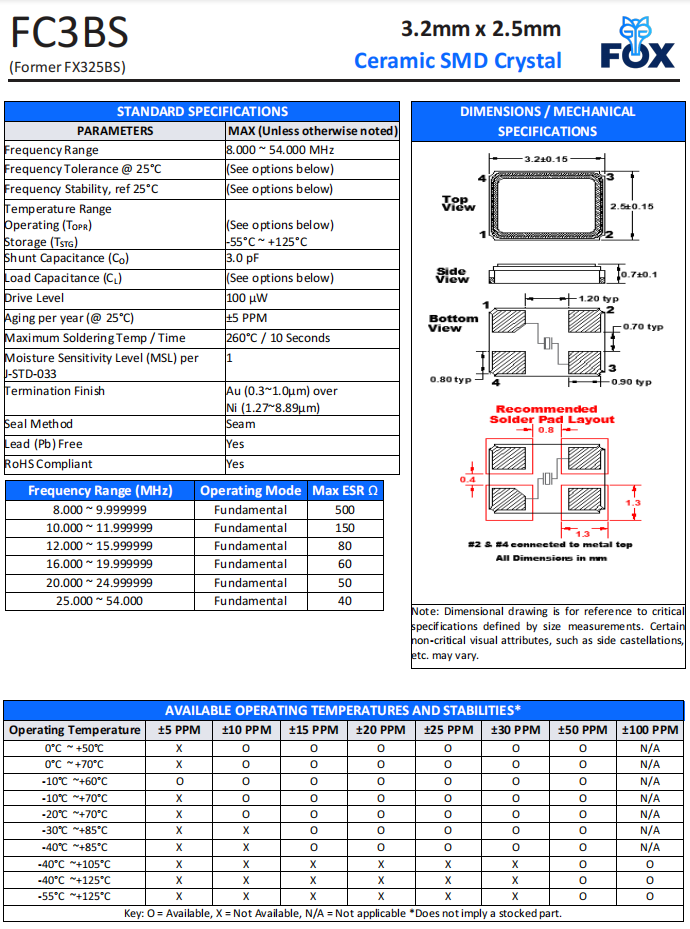

FC3BSBBGM20.0-T1,FOX晶體諧振器,FX325BS石英晶體,6G無線晶振,FC3BSECKP30.0-T1,汽車充電樁晶振，參數表
| PARAMETERS | MAX (Unless otherwise noted) |
| Frequency Range | 20.000 MHz |
| Frequency Tolerance @ 25°C | (See options below) |
| Frequency Stability, ref 25°C | (See options below) |
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -55°C ~ +125°C |
| Shunt Capacitance (CO ) | 3.0 pF |
| Load Capacitance (CL ) | (See options below) |
| Drive Level | 100 µW |
| Aging per year (@ 25°C) | ±5 PPM |
| Maximum Soldering Temp / Time | 260°C / 10 Seconds |
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
1 |
| Termination Finish |
Au (0.3~1.0µm) over Ni (1.27~8.89µm) |
| Seal Method | Seam |
| Lead (Pb) Free | Yes |
| RoHS Compliant | Yes |

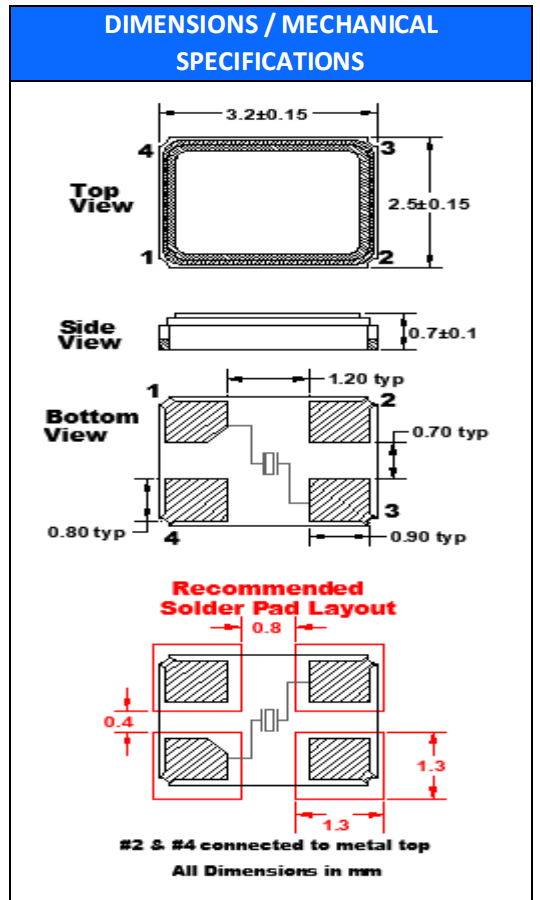

FC3BSBBGM20.0-T1,FOX晶體諧振器,FX325BS石英晶體,6G無線晶振,FC3BSECKP30.0-T1,汽車充電樁晶振，尺寸圖
FC3BSBBGM20.0-T1,FOX晶體諧振器,FX325BS石英晶體,6G無線晶振,FC3BSECKP30.0-T1,汽車充電樁晶振
3225mm體積非常小的SMD晶振器件,是民用小型無線數碼產品的最佳選擇,小體積貼片晶振被應用于,手機藍牙,GPS定位系統,無線通訊集,高頻率的穩定性能,非常好的減少電磁干擾的影響,是民用無線數碼產品最好的選擇,符合RoHS/無鉛.
| 原廠編碼 | ?？怂咕д?/a> | 型號 | 頻率 | 包裝/封裝 | 頻率穩定度 |
| FX135A-327 | Fox晶振 | FX135A | 32.768kHz | 2-SMD, No Lead | - |
| FQ3225B-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX252BS-16.000 | Fox晶振 | FX252B | 16MHz | 4-SMD, No Lead | ±50ppm |
| NC38LF-327 | Fox晶振 | NC38LF | 32.768kHz | Cylindrical Can, Radial | - |
| FQ3225B-25.000 | Fox晶振 | FQ3225B | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-24.000 | Fox晶振 | FQ3225B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-12.000 | Fox晶振 | FX425B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX252BS-24.000 | Fox晶振 | FX252B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-27.000 | Fox晶振 | FQ3225B | 27MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-25.000 | Fox晶振 | FQ3225B | 25MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-24.000 | Fox晶振 | FQ3225B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-12.000 | Fox晶振 | FQ3225B | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX252BS-20.000 | Fox晶振 | FX252B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-16.000 | Fox晶振 | FX425B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225B-20.000 | Fox晶振 | FQ3225B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-16.000 | Fox晶振 | FQ3225B | 16MHz | 4-SMD, No Lead | ±50ppm |
| FQ3225BR-20.000 | Fox晶振 | FQ3225B | 20MHz | 石英晶振 | ±50ppm |
| 603-12-67 | Fox晶振 | FX325BS | 12MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-20.000 | Fox晶振 | FX425B | 20MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.000 | Fox晶振 | FX425B | 24MHz | 4-SMD, No Lead | ±50ppm |
| FX425B-24.576 | Fox晶振 | FX425B | 24.576MHz | 4-SMD, No Lead | ±50ppm |
| 603-25-203 | Fox晶振 | FX325BS | 25MHz | 4-SMD, No Lead | ±50ppm |
| 603-40-48 | Fox晶振 | FX325BS | 40MHz | 4-SMD, No Lead | ±20ppm |
| 603-25-261 | Fox晶振 | FX325BS | 25MHz | 4-SMD, No Lead | ±20ppm |
